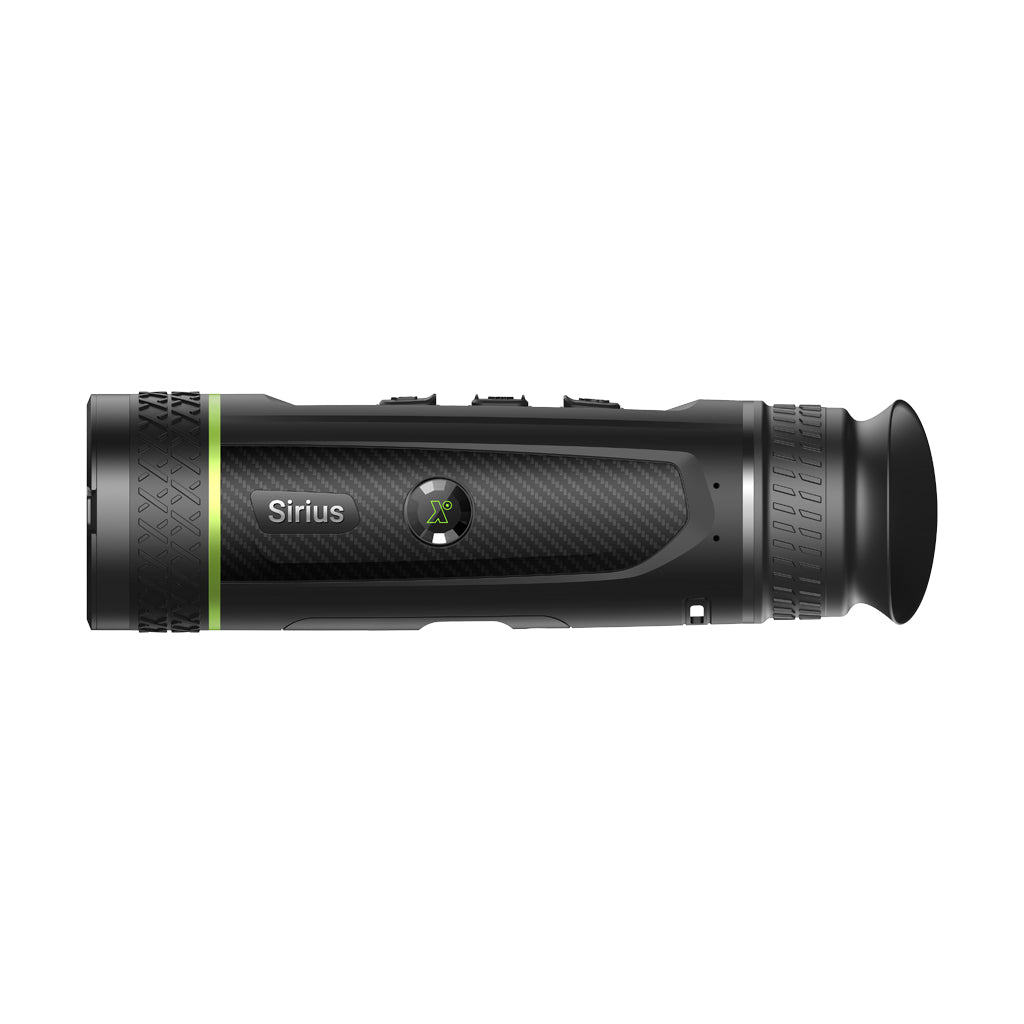

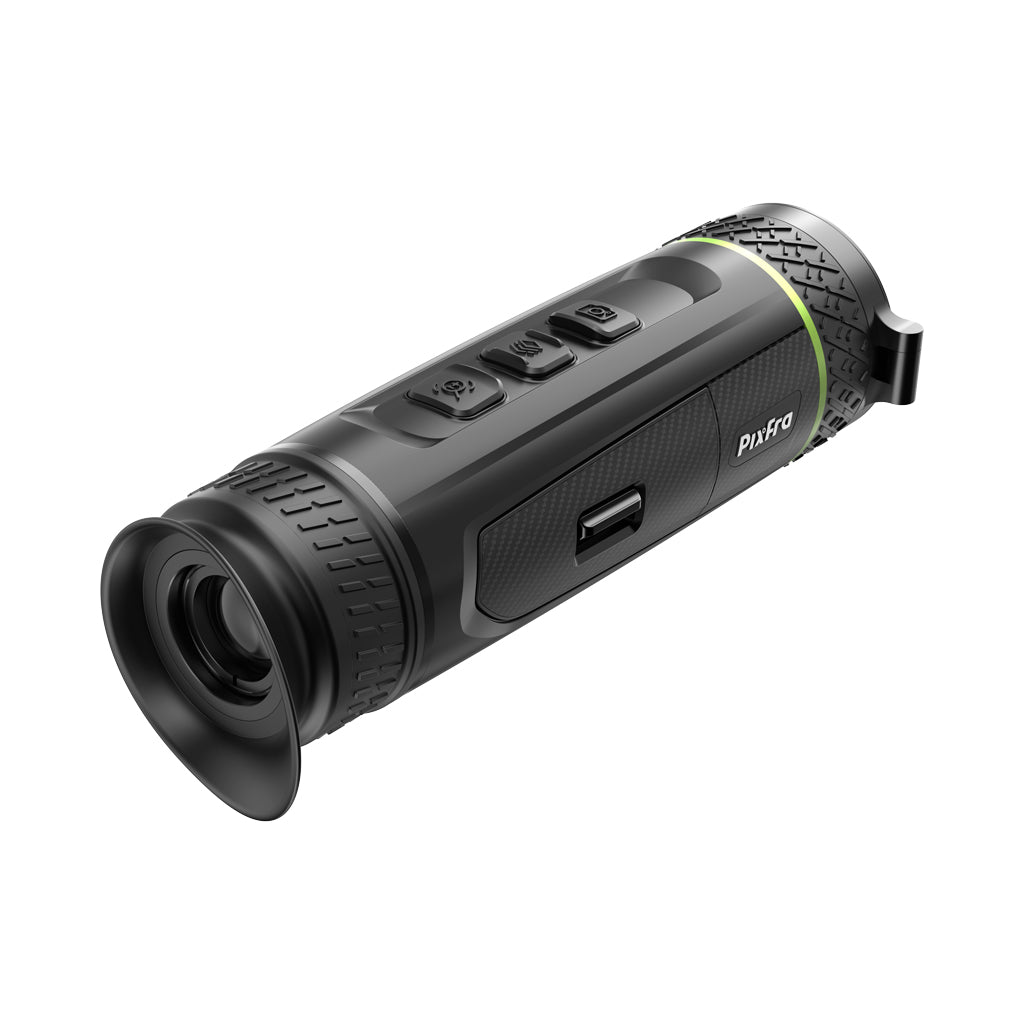

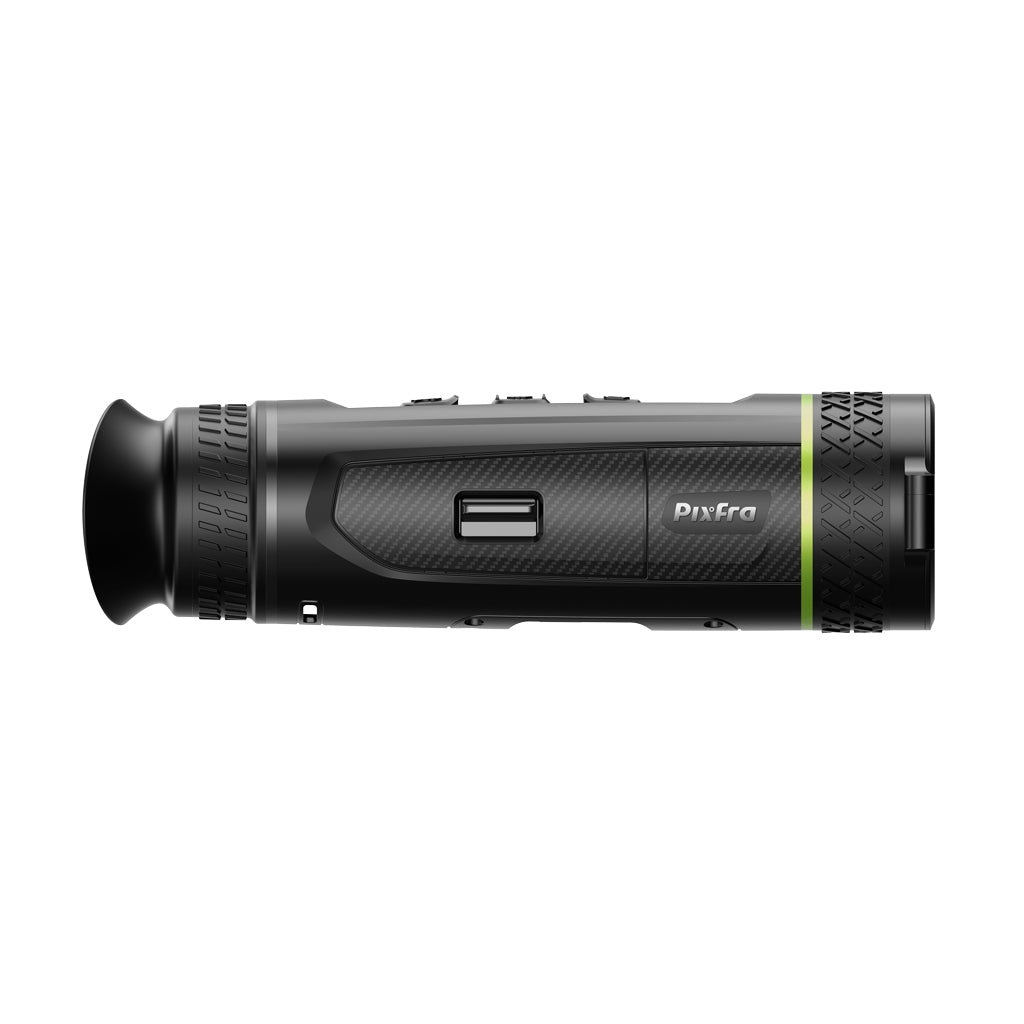

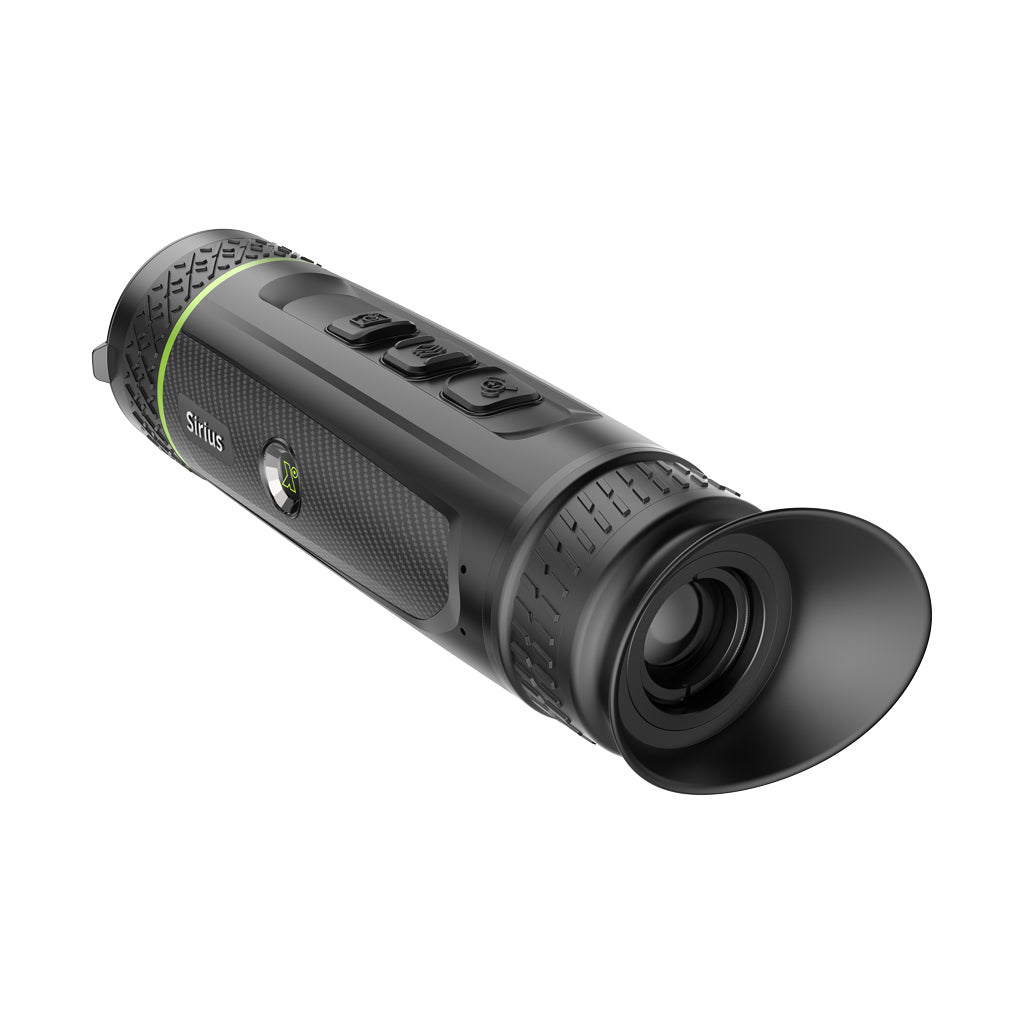

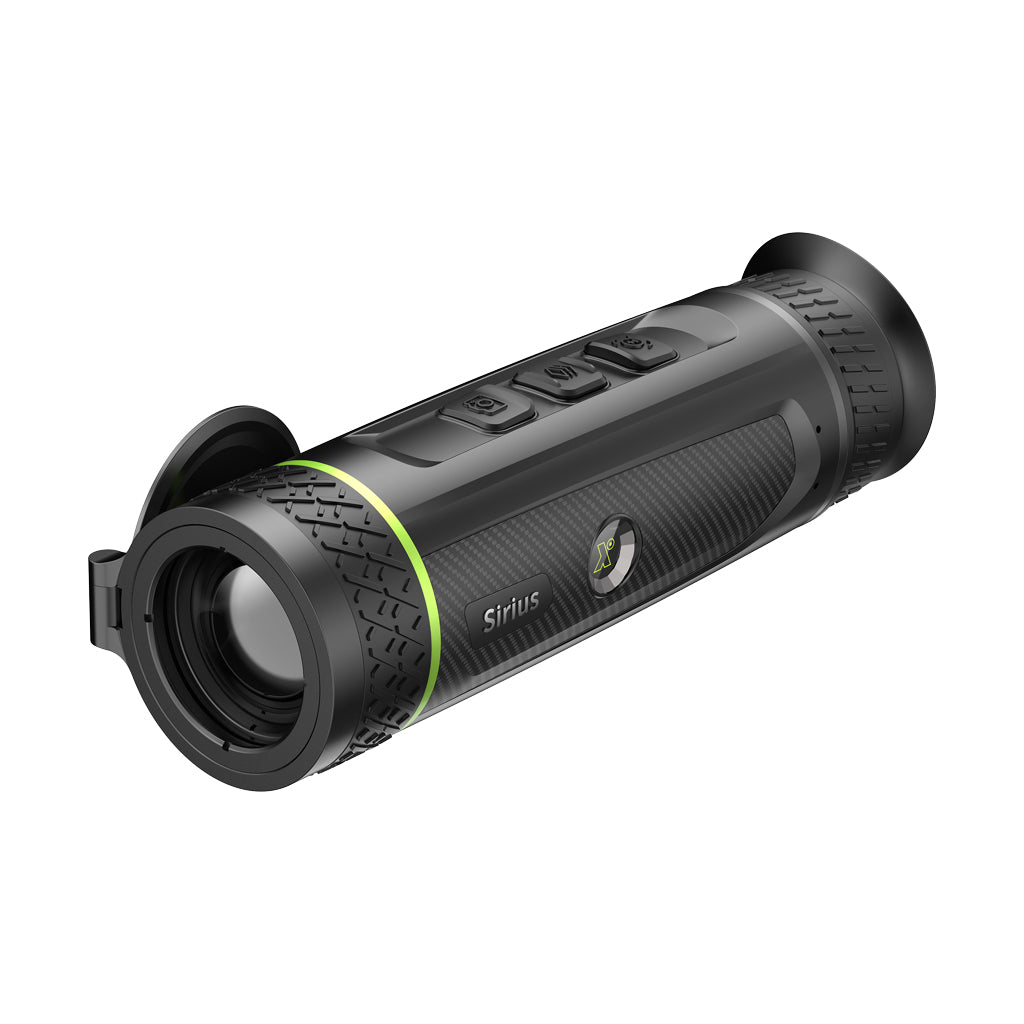

Pixfra Sirius S435 18mK Thermal Imaging Monocular

Meet the NEW Pixfra Sirius S435, a serious thermal imager equipped with a 384x288, 12 μm, 18 mK NETD thermal sensor and F1.0 large aperture lens.

High Performance Thermal Vision

Elevating thermal imaging with the PIPS 2.0 processing system this cutting-edge technology combined with Pixfra's cohesive lens and sensor design ensures a superior thermal experience that surpasses conventional standards, offering users an unprecedented level of accuracy and reliability from the Sirius.

HD OLED Display with Comfortable Viewing

Highlighted by it's 0.49-inch dispay with a 1920x1080 OLED resolution the enhanced display delivers a viewing experience that's second to none, offering a comfortable and clear vision that brings distant scenes to life with vivid clarity.

New Signature Design

Step into a legacy of design with Pixfra's side power key. Complimented by a crystal breathing light, the power button offers 5-level brightess levels which gives a subtle indication of the devices status.

The lens's X-marked focus ring allows for easy focus adjustment in both dry and wet weather conditions, complimented by carbon fiber accents the Sirius is a pleasure on the eye and a pleasure to handle.

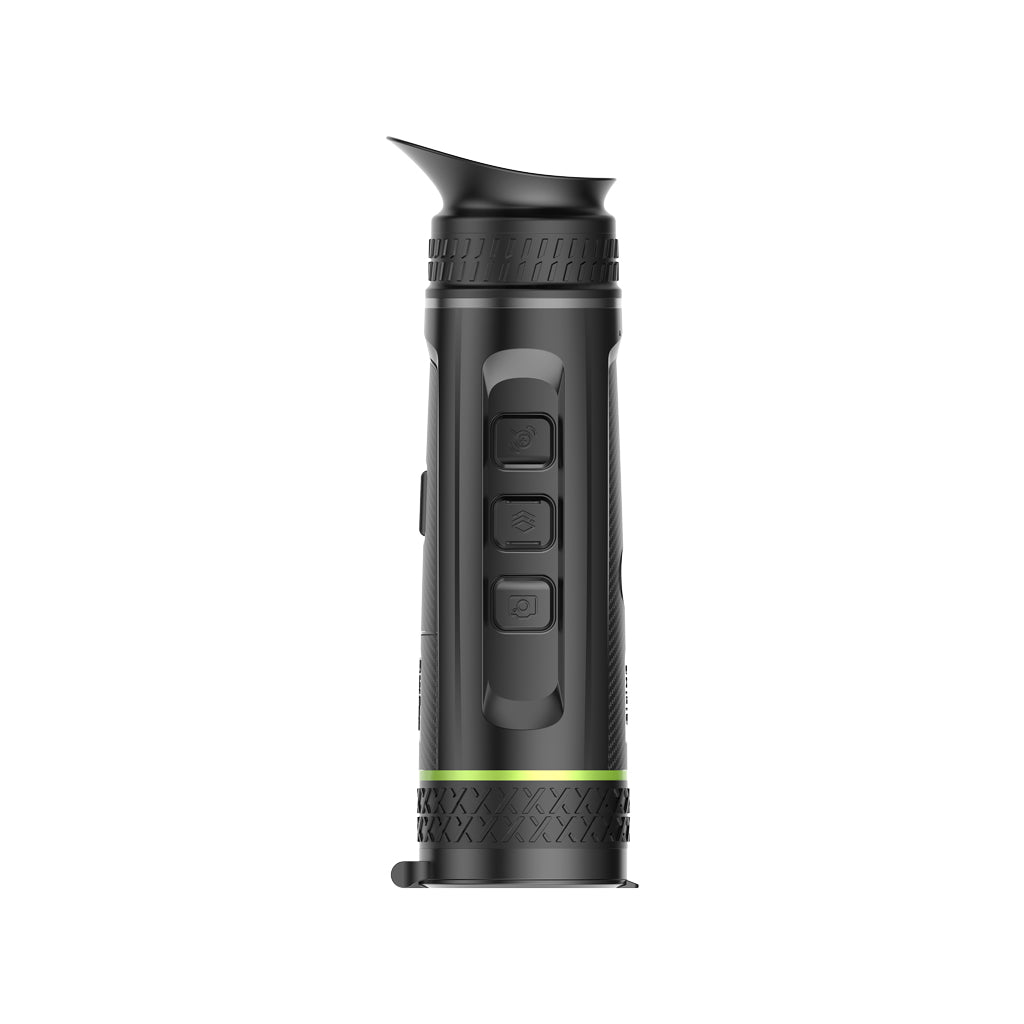

Reliable Single-Handed Control

Featuring a classic three-key layout the Sirius by Pixfra is designed for reliable one-handed operation. It's comfortable shape and lightweight design ensures a pleasant grip for extended outdoor adventures, highlighting Pixfra's commitment to user-friendly functionality.

Quick-Change Battery

Chaging a battery has never been easier - with a simple touch the side located battery cover pops open, letting you quickly swap the rechargeable lithium battery, locking securely back into place with a gentle push, making every use smooth and dependable.

Equipped with Metal Lens Cover

The included metal lens cap offers a robust protection of the thermal lens guarding against dust, scratches and impacts. The durable cover is designed to ensure longevity and clarify of the optical experience.

All-Day Comfort with Colour Palettes

As expected with any Pixfra device the Sirius offers a suite of six comfortable colour palette options designed to meet the needs of all-day use and personal preference between white hot, black hot, iron red, alarm, emerald and amber.

Features

• Vanadium oxide uncooled focal plane detector

• Ergonomic buttons layout

• Crystal breathing power button

• Carbon fiber decorative texture design

• FHD OLED display

• Replaceable 18650 battery

• High optical magnification

• Connects to the mobile app through Wi-Fi

• Six color palettes

• Built-in 64GB

• IP67 rated

Specification

Thermal

• Thermal Sensor: 384×288, 12 μm

• Spectral Range: 8 μm – 14 μm

• Sensitivity (NETD): ≤18 mK

• Focal Length (Lens): 35mm

• Aperture: F1.0

• Field of View: H: 7.85°; V: 5.89°

• Focus Control: Manual

• Close Focus Distance: 3m

• Detection Distance: 1800m

• Recognition Distance: 464m

• Identification Distance: 232m

• Magnification: 3.68×

• Frame Rate: 50 Hz

Display

• Screen: 1920×1080, 0.49 inch, OLED

• Color Palettes: 6 (white hot/black hot/iron red/alarm/emerald/amber)

• Video Compression: H.264

• Diopter: –5D to +3D

• Eye Relief: 15mm

• Exit Pupil: 8mm

Function

• Digital Zoom: 1×, 2×, 4×, 8×

• Video Recorder: Yes

• Snapshot: Yes

• Wi-Fi Hotspot: Yes

• Hot Spot Track: Yes

• FFC Calibration: Auto, Manual, External Correction

• Standby Mode: Yes

• DPC (Defective Pixel Correction): Yes

• MIC: Yes

• Compass: Yes

• Storage: Built-in 64GB

Power

• Battery Type: Replaceable 18650 battery

• Battery Life: <7.5 hrs

• Power Supply: 5 VDC/2A

• Port: USB Type-C

• Overvoltage Protection: Yes

General

• Operating Temperature: –30 °C to +55 °C

• Operating Humidity: ≤95%

• Protection Grade: IP67

• Packaging Dimensions: 291mm × 140mm × 127mm

• Product Dimensions 194.3mm × 54mm × 65.4mm

• Gross Weight: 1.15 kg

• Net Weight: 421g

What you get

• Pixfra Sirius S435
• Rechargeable 18650 Battery (x2)
• Battery Charger
• USB Cable
• Carry Case
• Bag Strap
• Neck Strap
• Wrist Strap
• Lens Cleaning Cloth
• User Manual
• Warranty Card

Warranty

This comes with a 3 year warranty from Pixfra. See the User Manual that comes with the Pixfra Sirius.
