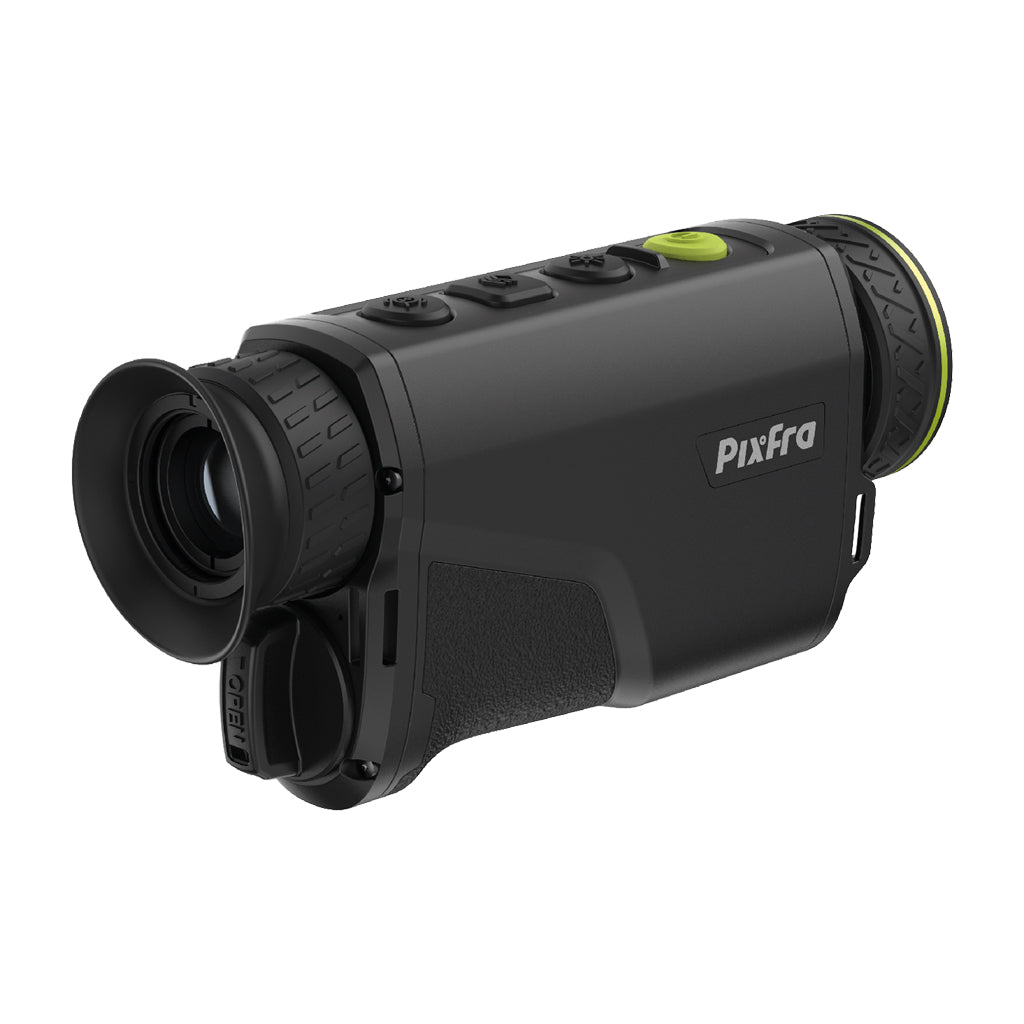

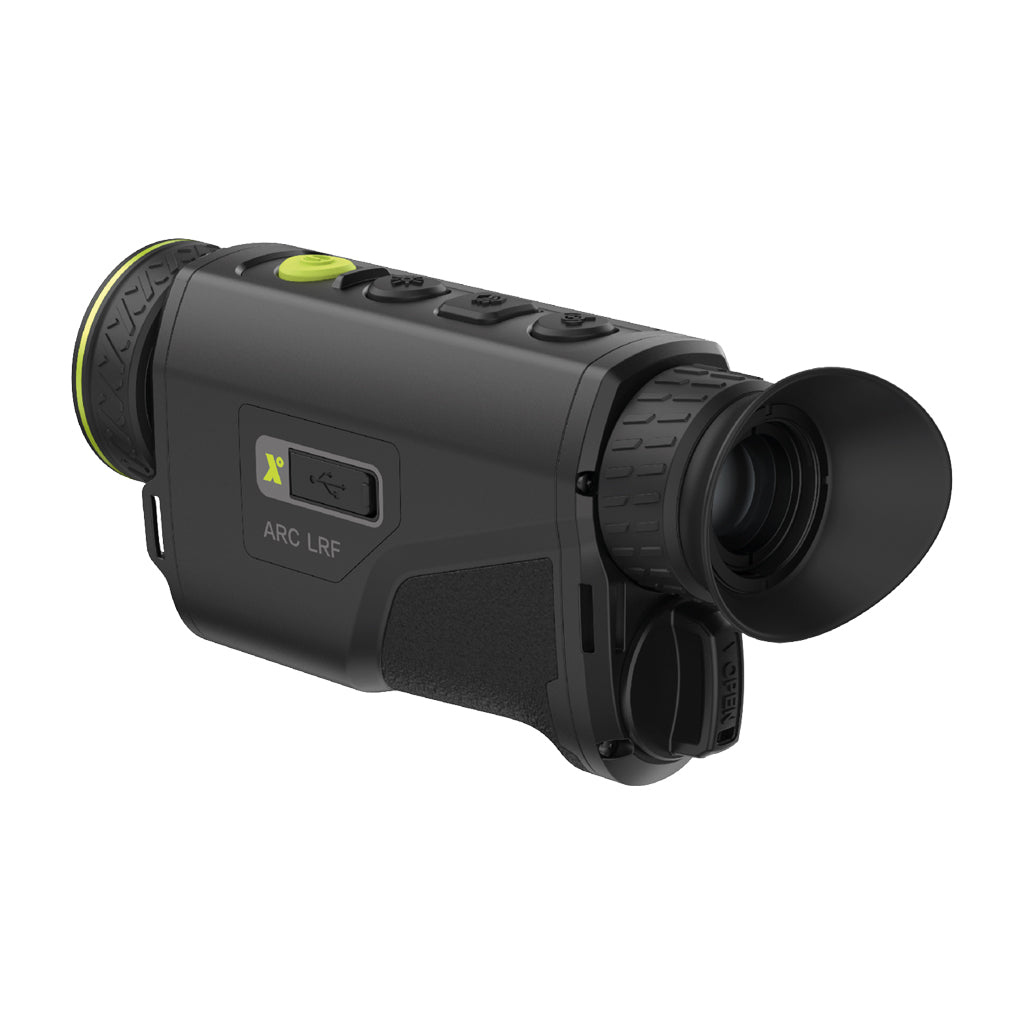

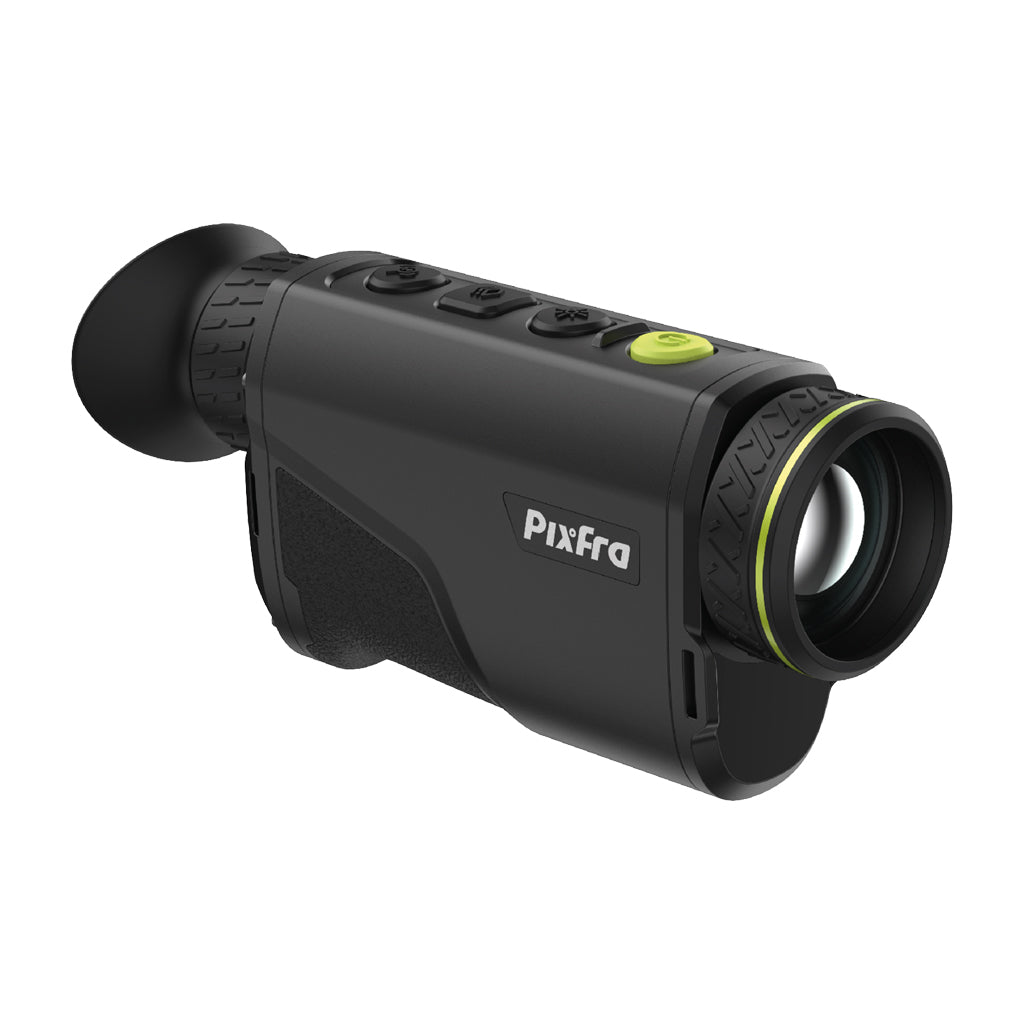

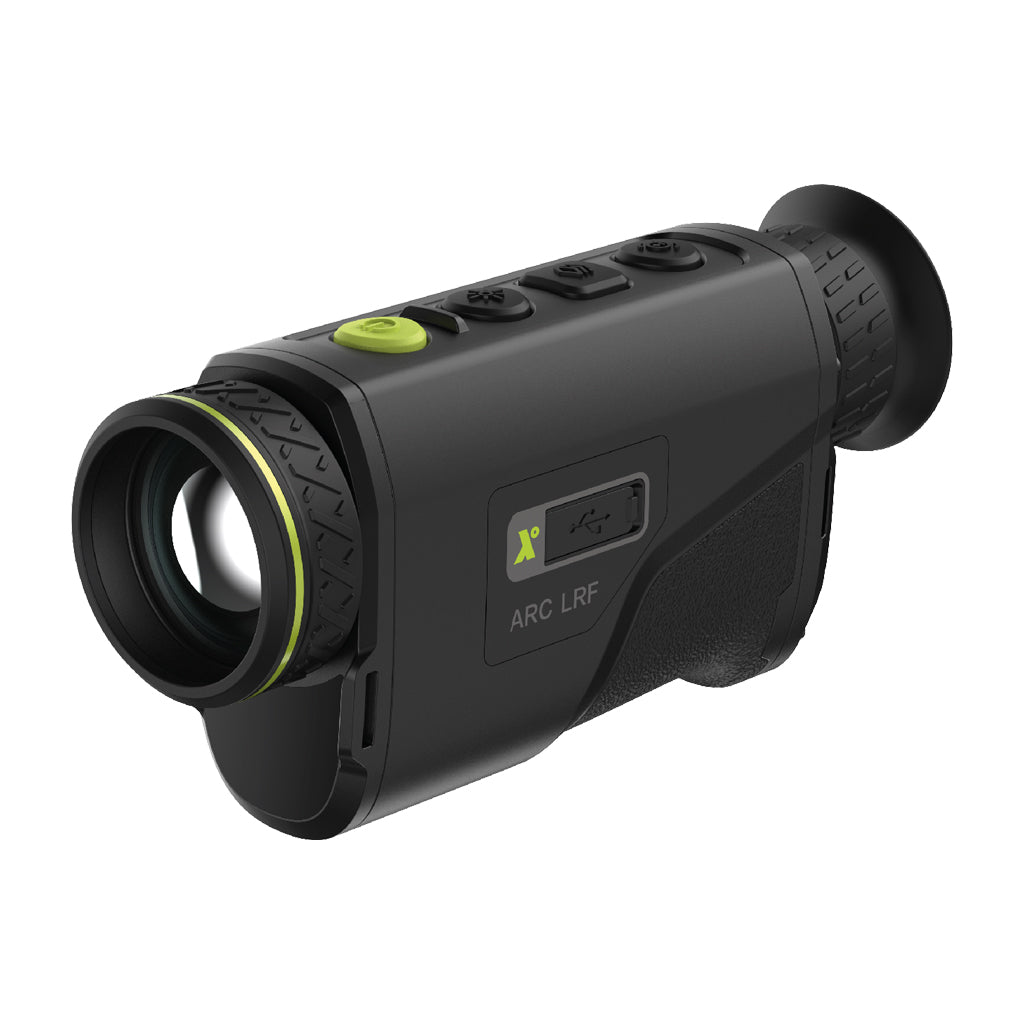

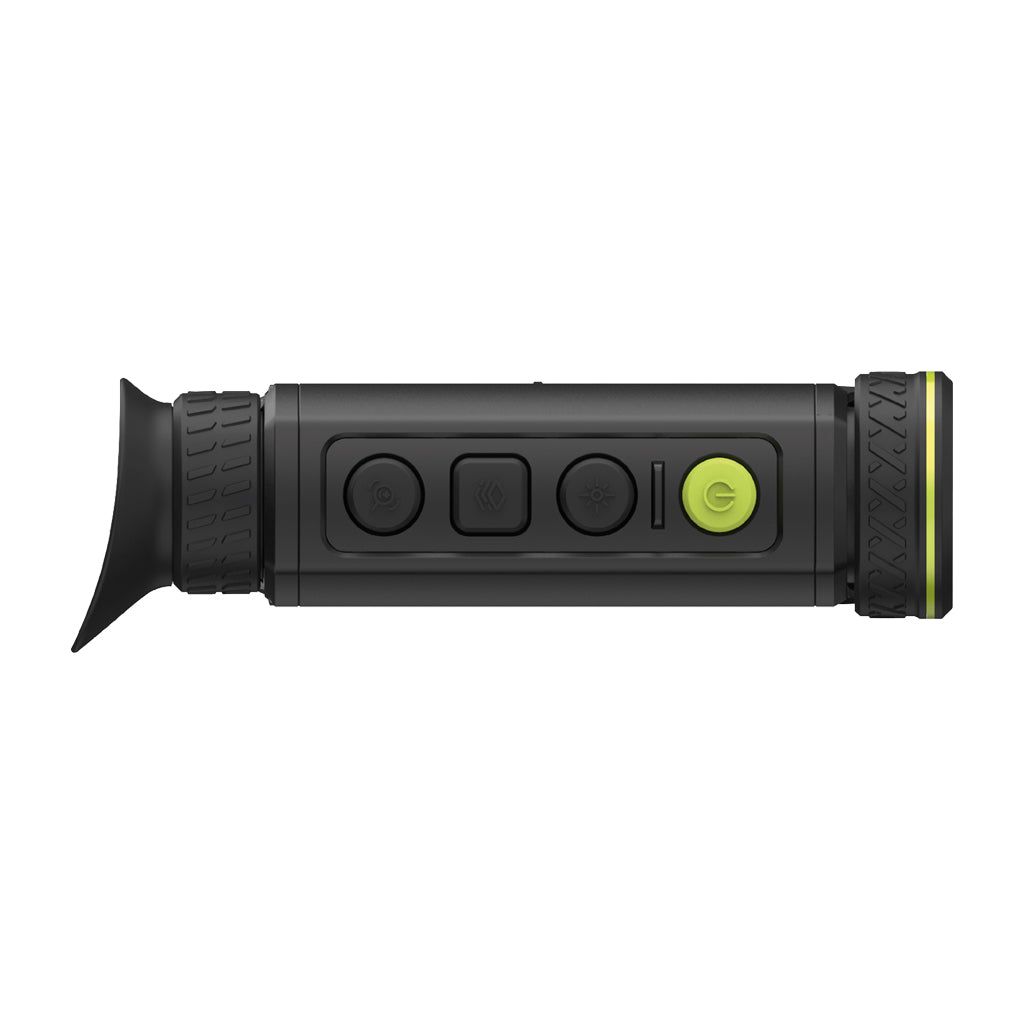

Pixfra Arc LRF A635 Pro 20mK Thermal Imaging Monocular

The Arc LRF series introduces the next step for the Arc series, bringing all of the powerful technology and image clarity found in the Arc series and adding a seamlessly integrated laser rangefinder. This new LRF enables accurate distance measurements at a range of up to 1000m, providing valuable distance data in the field.

See More with Powerful Optics

The Arc A635P LRF combines an extremely sensitive 640×512, 12µm, <20mK NETD thermal sensor and a powerful 35mm f1.0 objective lens, achieving a generous 21.9×17.6m @ 100m FOV, unprecedented thermal clarity, and a detection range of up to 1800m.

The sensor’s 20mK NETD thermal sensitivity achieves richly detailed and vivid thermal imagery, capturing each and every anatomical detail of even the smallest observed heat source, elevating your observation experience regardless of conditions. Pixfra’s intuitive PIPS (Pixfra Image Processing System) 2.0 achieves thermal imagery that is always crisp and clear by minimising environmental noise, boosting contrast, and enhancing image clarity and detail.

Gather Important Distance Data in the Field

The Arc LRF series, as its name suggests, now includes a seamlessly integrated precision laser rangefinder. This LRF will provide distance measurements in the field at a range of up to 1000m with an accuracy of ±1m, making it perfect for data gathering when you need it most and allowing for informed decision-making during observations.

The addition of a laser rangefinder does nothing to impede your observation experience, as it is so seamlessly integrated as to be virtually unnoticeable.

Designed for Comfortable Observation

Retaining the familiar design aspects of the original Arc series, the Arc LRF features a few changes to make sure your observation experience is as comfortable as possible. These ergonomic upgrades include a new contoured eyecup and a refined grip with a textured rubberised covering to improve your hold on the device in any weather conditions.

Its compact magnesium alloy bodyshell results in a lightweight device that remains comfortable in the hand during long periods of observation. But don’t let its size fool you, this monocular is built to last, withstanding the everyday bumps and knocks one comes to expect whilst working in varying scenarios. Its IP67 even protects the device against adverse weather, allowing it to work unimpeded by heavy rain, dense fog, snow, or high levels of humidity.

Uninterrupted Thermal Observation

Provided with two 18650 batteries, each providing up to 7 hours of battery life (depending on temperature) the Arc LRF is more than capable of keeping your observations going through the day and well into the night. A secure fit, twist cap battery cover, and the ability to swap between batteries quickly and easily makes sure you can worry less about power consumption and focus more on the task at hand.

Share the View

Connect the Arc LRF to the intuitive Pixfra Outdoor app and enhance your observation experience even further. Through the app, the Arc LRF can share its screen with up to four people located within 20m of the device — so, when one person spots an object or animal of interest, all four members of the group can observe at the same time, without having to share the device’s viewfinder.

Features

• Vanadium oxide uncooled focal plane detector

• Fully integrated 1000m laser range finder

• FHD OLED display

• Replaceable 18650 battery

• Left and right hand user friendly design
• Lightweight and portable
• Six colour palettes
• Built-in 32GB
• IP67 rated

Specification

• Detector Type: Vanadium oxide uncooled focal plane detector

• Effective Pixels: 640 (H) × 512 (V)

• Pixel Pitch: 12 μm

• Spectral Range: 8 μm–14 μm

• Sensitivity (NETD): ≤20 mK@f/1.0, 25 °C

• Focal Length: 35 mm

• Aperture: F1.0

• Field of View: H: 12.5°; V: 10°/H: 21.9 m; V: 17.6 m (@100 m)

• Focus Control: Manual

• Close Focus Distance: 2 m (6.56 ft)

• Detection Distance: 1,800 m (4,265.09 ft)

• Recognition Distance: 1,100 m (2,624.67 ft)

• Identification Distance: 700 m (1,640.42 ft)

• Magnification: 2.36x

• Frame Rate: 50 Hz

• Screen: 1440 × 1080, OLED

• Color Palettes: 6 (white hot/black hot/iron red/alarm/emerald/amber)

• Video Compression: H.264

• Diopter: –3 D to +5 D

• Eye Relief: 15 mm (0.59 inch)

• Exit Pupil: 8 mm (0.31 inch)

• Digital Zoom: 1×, 2×, 4×, 8×

• Video Recorder: Yes

• Snapshot: Yes

• Wi-Fi Hotspot: Yes

• Hot Spot Track: Yes

• FFC Calibration: Auto, Manual, External Correction

• Standby Mode: Yes

• DPC (Defective Pixel Correction): Yes

• Storage: Built-in EMMC (32 GB)

• Max. Distance (LRF): 1,000 m (3,280.84 ft)

• Min. Distance (LRF): 10 m (32.81 ft)

• Accuracy (LRF): ±1 m (3.28 ft)

• Safety Class (LRF): 1

• Wavelength (LRF): 905 nm

• Battery Type: Replaceable 18650 battery

• Battery Life: 6 h@25 °C (Wi-Fi off, LRF off)

• Power Supply: 5 VDC/2 A

• Port: USB Type-C

• Overvoltage Protection: Yes

• Operating Temperature: –30 °C to +55 °C (–22 °F to +131 °F)

• Operating Humidity: ≤95%

• Protection Grade: IP67

• Dimensions: 172 mm × 53 mm × 78 mm (6.77" × 2.09" × 3.07")

• Weight: ≤375 g (0.83 lb) (battery excluded)

What you get

• Pixfra Arc LRF A635P
• 2 x 18650 Li-ion Batteries
• USB-C Cable
• Dual Battery Charger

• Carry Case
• Carry Pouch
• Lens Cleaning Cloth
• Wristband
• Quick Start Guide

Warranty

This comes with a 3 year warranty from Pixfra. See the User Manual that comes with the Pixfra Arc LRF Pro.
