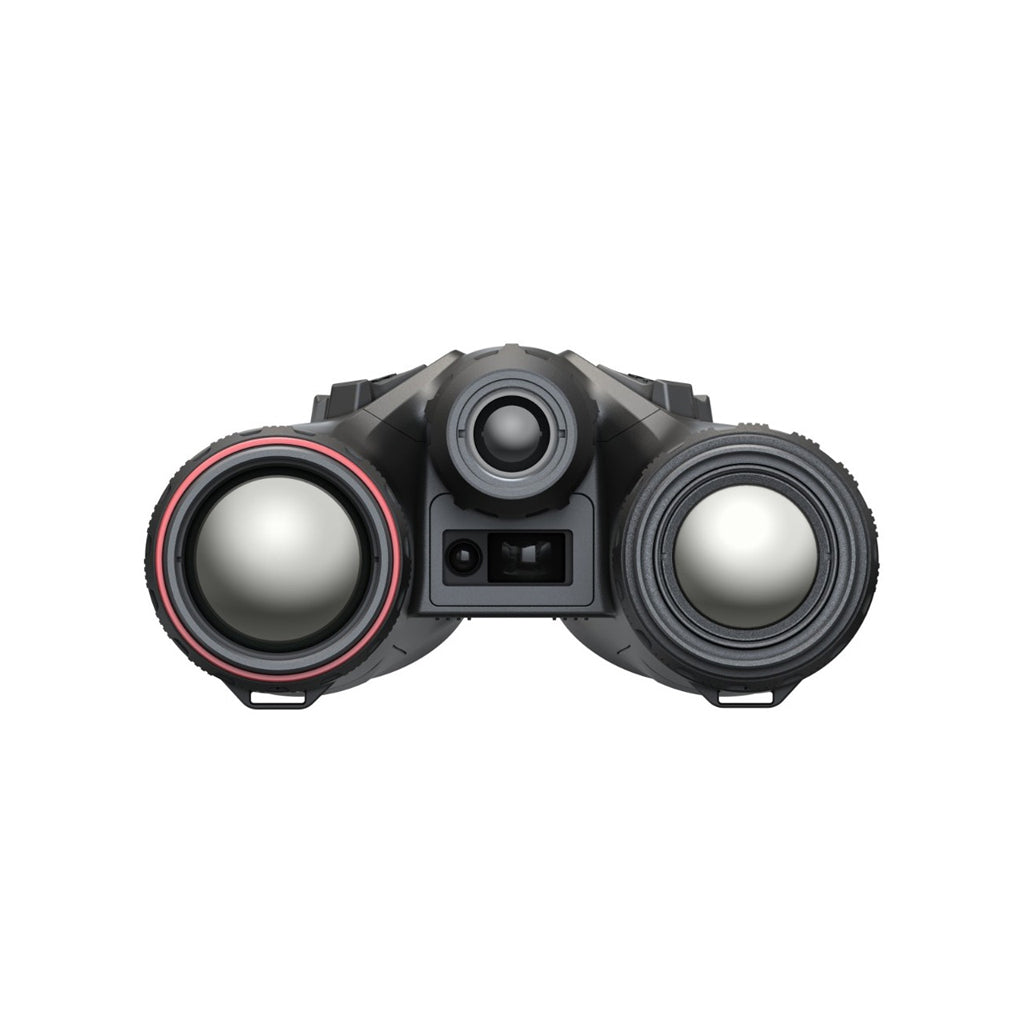

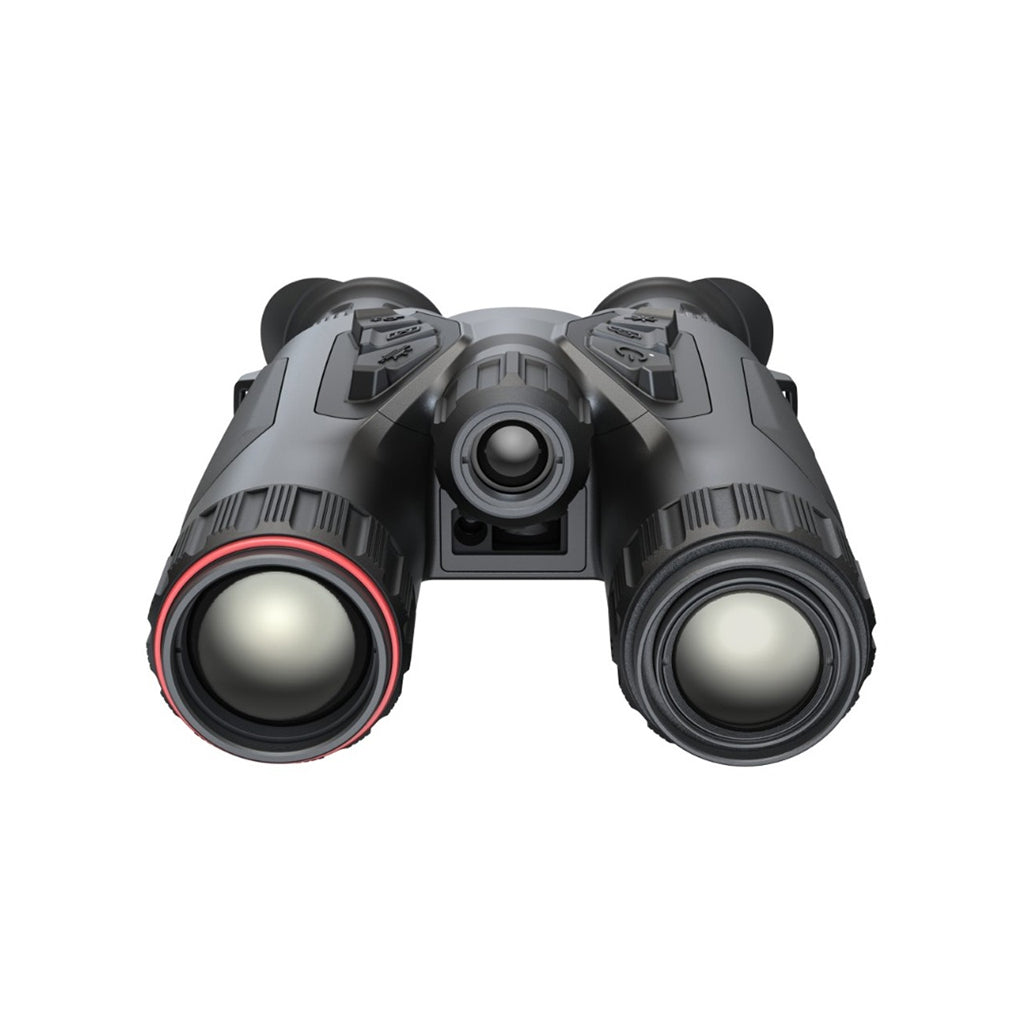

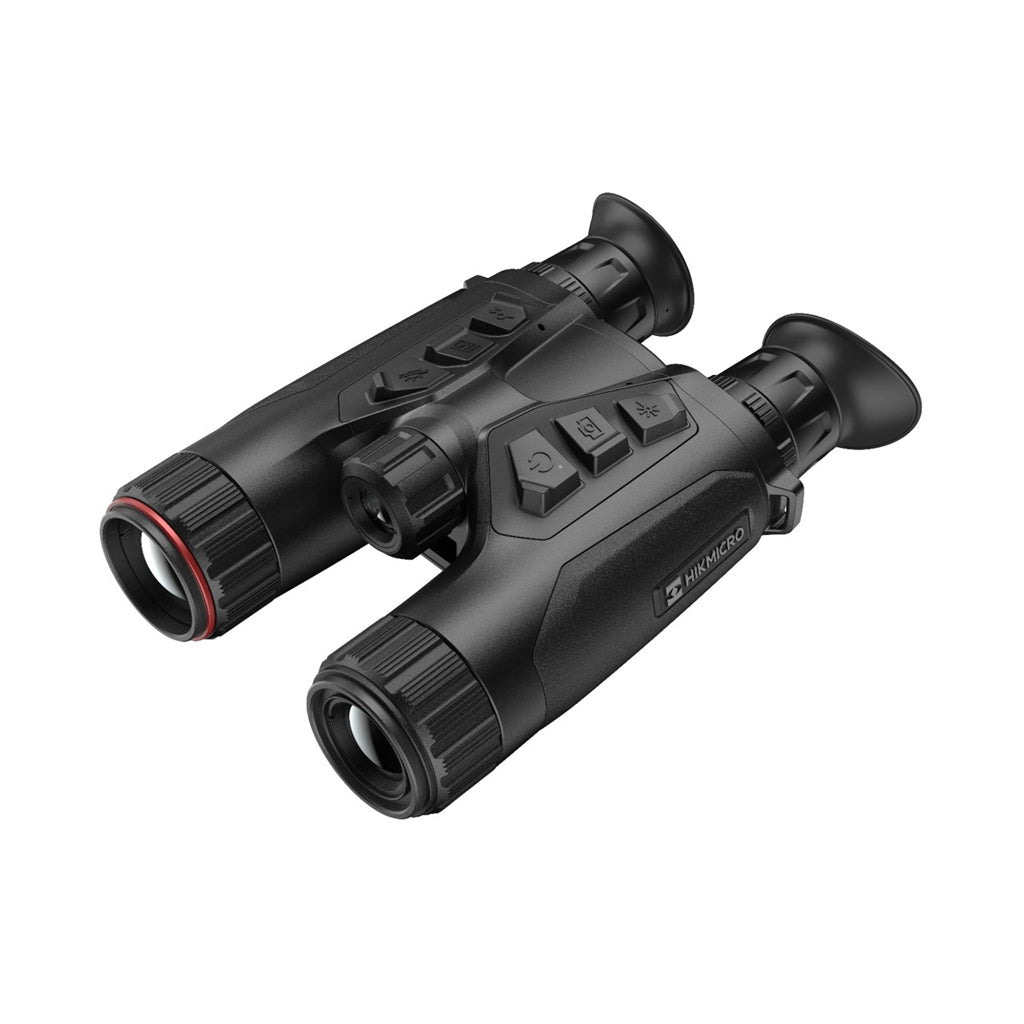

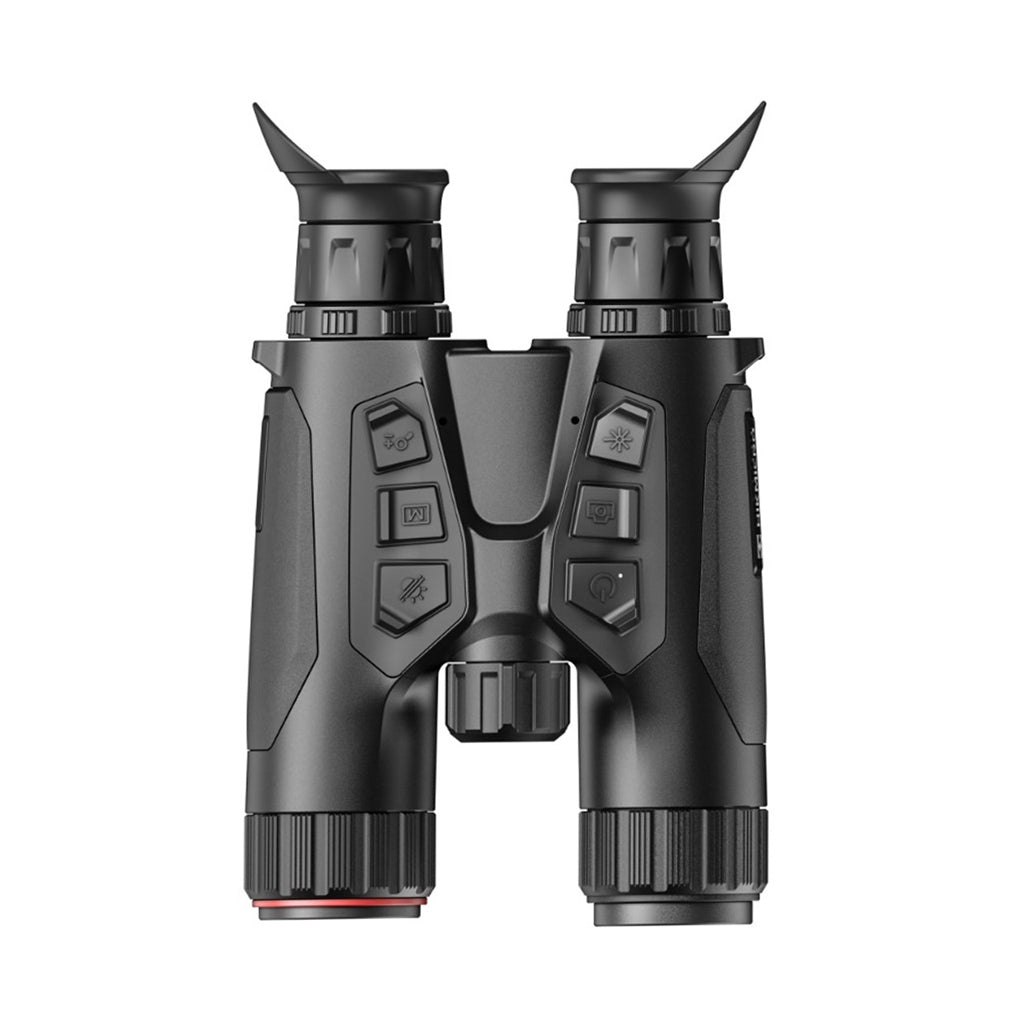

HIKMICRO Habrok HE25L 35mK Multi-Spectrum Thermal Binoculars

Introducing the entry level Habrok 4K multi-spectrum binocular which combines the detection power of thermal with a high resolution 4K camera that delivers in daylight, twilight and darkness – all at an impressive new price.

Built around a robust & lightweight magnesium alloy chassis the HE25L combines a Sub 35mK NETD, 256px thermal sensor with a 4K digital optical channel, plus built-in infrared night vision, and a 1000m laser range finder to deliver an all-in-one device that does many things that a conventional analogue optic cannot:

• High performance thermal spotting will detect the heat of birds and animals and reveal their location even when hidden to the naked eye by camouflage, shadows, foliage and difficult light and weather. Thermal spotting works day & night.
• The 4K digital optical channel adds a full colour ultra high resolution image in daylight, and a monochromatic image even in complete darkness.
• Zoom from the 5.5x base mag all the way to 22x – In optical mode the 4K sensor ensures that you never run out of resolution across a wide magnification range.
• The Habrok 4K digital optical channel in twilight is a particular stand-out, The digital system works extremely well in low light, well beyond the point that regular binoculars stop delivering an image.  (and on, into complete darkness).
• Find, watch and enjoy wildlife in complete darkness thermal and night vision add another dimension to your wildlife observation.
• Powered by 18650 batteries With a run time of up to 8hrs from the two detachable batteries, you can enjoy extended trips into nature without fear of running out of power.
• The ability to record images, video and audio directly into the on-board memory, and play it back either in the device or to a phone or tablet nearby, means that even a fleeting glimpse of a bird or animal can be reviewed in detail for greatly improved identification potential.

Anyone who has used traditional optical binoculars will feel instantly at home with the size and weight of the Habrok 4K but with so much tech built in to enhance your outdoors experience. Quickly detect in thermal, view in the optical channels and record to the inbuilt memory. The Habrok 4K is the binocular for the future.

The robust and ergonomic Magnesium Alloy chassis exudes quality while also putting all of the major controls at your fingertips. This allows you to intuitively switch between the different image modes and take control of the other features including the 1000m laser range finder, even in the dark.

The Habrok is powered by two easily replaced 18650 batteries delivering extended run time.

The comfortable eye cups and interpupillary adjustment in the eyepieces allow you to find the perfect fit for your eyes and offer a great view of the large OLED display. You can also use the HIKMICRO Sight app to stream your activity to your mobile device so your friends can share your view or you can remotely observe. You can record videos and images to the inbuilt memory and share them later on your social channels.

HIKMICRO HABROK 4K HE25L 5.5-22X60 is a powerful and innovative digital and thermal binocular designed especially for daytime use. Combined with a 256 thermal detector, an advanced 4K digital detector for a 5.5x-22x @60 mm lens, and a 1000 m laser rangefinder, this all-in-one binocular can be mainly applied in forest & field hunting, birding, animal searching, adventuring, and rescuing in various weather conditions.

Features

• 256 × 192 resolution @12 μm thermal detector
• High sensitivity thermal module NETD <35 mK (@25°C, F# = 1.0)
• 25 mm, F1.0 lens with thermal detection range up to 1200 m
• 3840 × 2160 4K ultra high-resolution CMOS detector
• 60 mm, F2.2 digital lens with 5.5x to 22x digital zoom
• 1920 × 1080 resolution 0.49-inch OLED display
• Built-in 850 nm IR illuminator and Laser Rangefinder of 1000m measuring distance
• 795g lightweight, with a compact and ergonomic design

Specification

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Max. Resolution: 256 × 192
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 35 mK (@25°C), F# = 1.0
• Lens (Focal Length): 25 mm, F1.0
• Focus Mode: Focus Ring
• Detection Range: 1200 m
• Min. Focusing Distance: 3 m
• Magnification: 4.3x to 17.2x (4x)
• Field of View (H × V): 7.0° × 5.3°/12.2 m × 9.3 m @100m

• Image Sensor: 1.88’’ Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Focal Length: 60 mm, F2.2
• Min. Working Distance: 8 m
• Focus Mode: Focus Ring
• Magnification: 5.5x to 22.0x(4x)
• Field of View (H × V): 6.9°× 4.1°/12.0 m × 7.2 m @100 m
• Smart IR: Yes
• IR Illuminator Wavelength: 850 nm
• Viewing Range at Night: 400 m

• Display: 0.49 inch, OLED, 1920 ×1080
• Palettes: Thermal (Black Hot, White Hot, Red Hot, Fusion); Optical (Day, Night, Auto)
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit Pupil: 8 mm
• Eye Relief: 15 mm
• Diopter (Range): -5 D to +3 D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, warm
• Contrast Adjustment: Yes
• Zoom Pro: Yes

• Record Video: Yes
• Capture Snapshot: Yes
• Audio Recording: Yes
• Standby Mode: Yes
• Storage: Built-in EMMC (64 GB)
• PIP: Yes
• Hotspot: Yes
• Hot Track: Yes
• Digital Magnetic Compass: Yes
• GPS: Yes
• Local Album: Yes

• Battery Type: Replaceable and Rechargeable Li-ion Battery
• Battery Operating Time: ≥ 8 h (25°C, with hotspot off)
• Type-C Power Supply: 5 VDC, 2 A
• Supports External Power Supply: Yes

• Protection Level: IP67
• Dimension: 138 mm × 68.2 mm × 223 mm
• Working Temperature: -30°C to +55°C
• Weight: 795 g without batteries
• Interpapillary Adjustment Range: 60 mm to 74 mm
• Mounting Adapter: 1/4“-20-UNC

• Safety Class for Laser: Class 1
• Wavelength: 905 nm
• Max. Measuring Range: 1000 m
• Measurement Accuracy: ±1 m
• Min. Measuring Range: 10 m

Warranty

This comes with a 3 year warranty from HIKMICRO. See the User Manual that comes with the HIKMICRO device.
