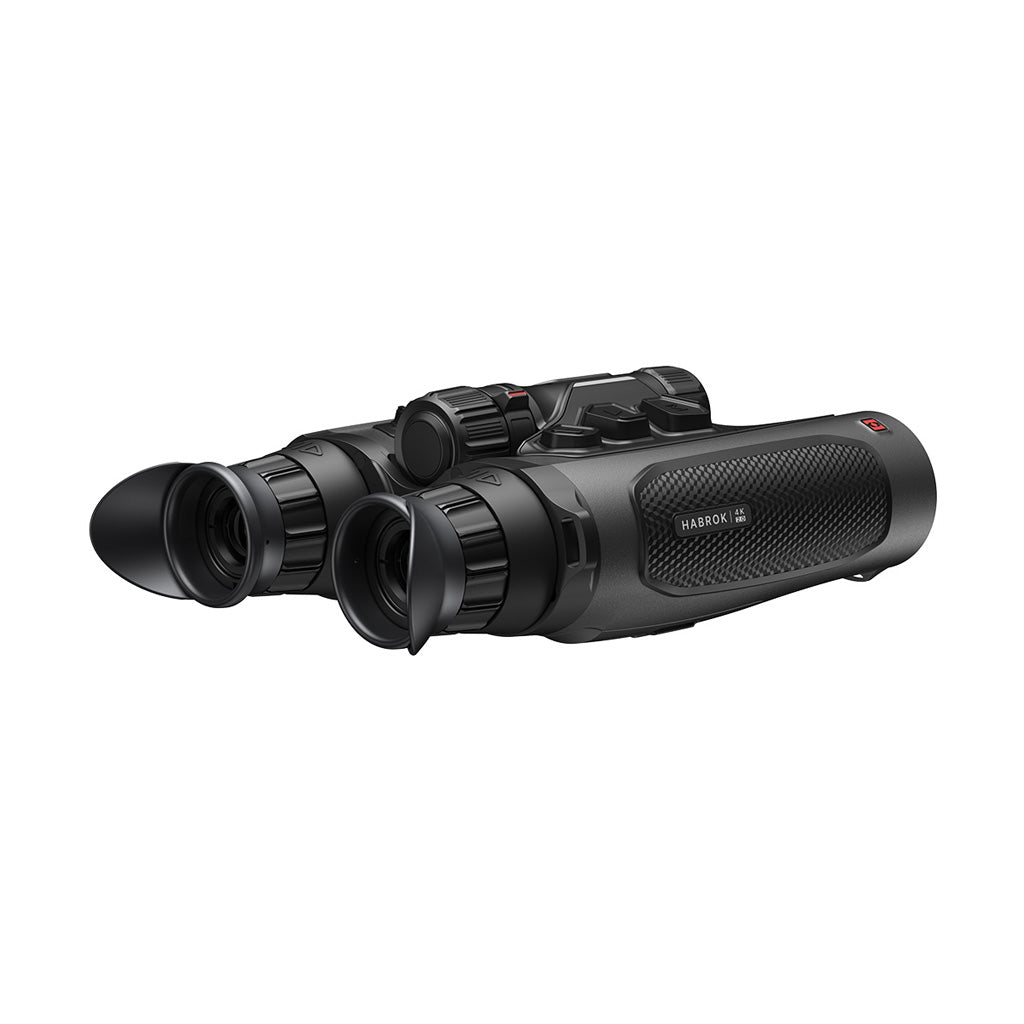

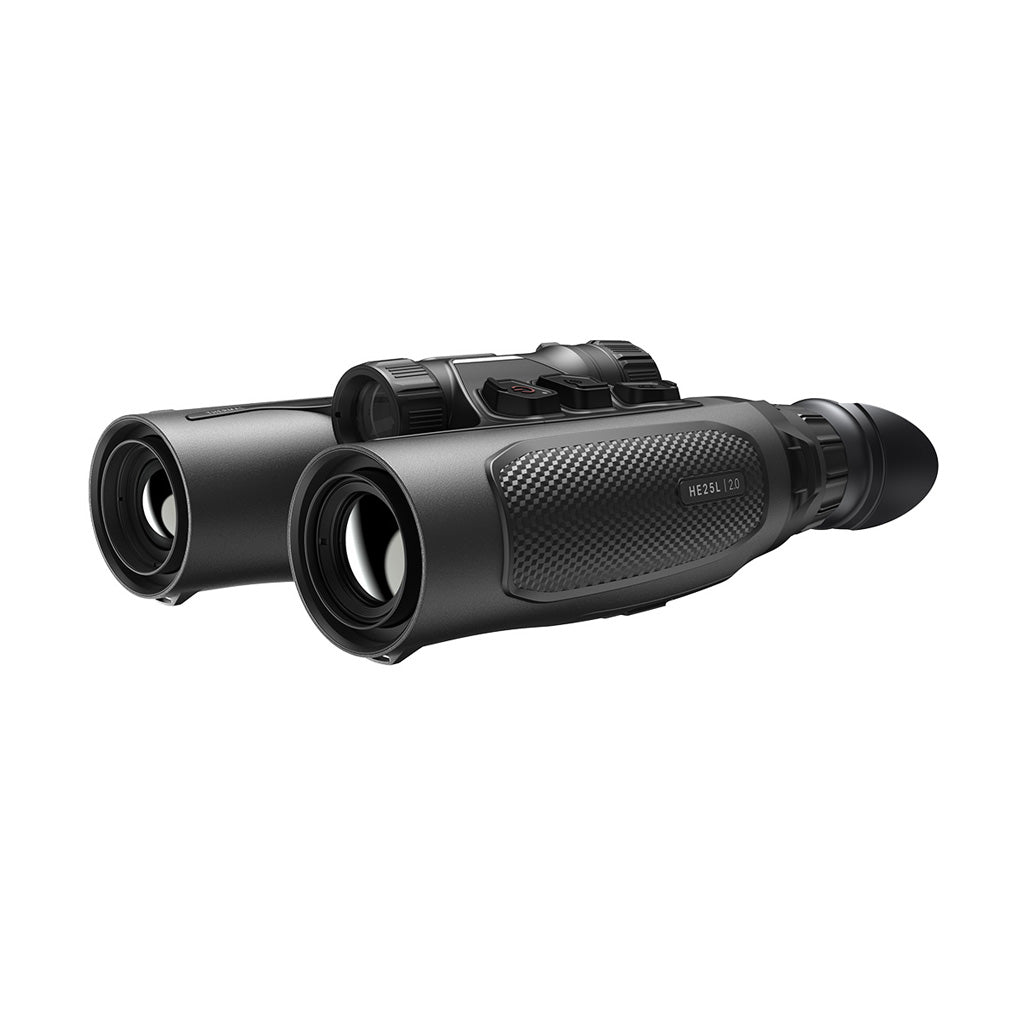

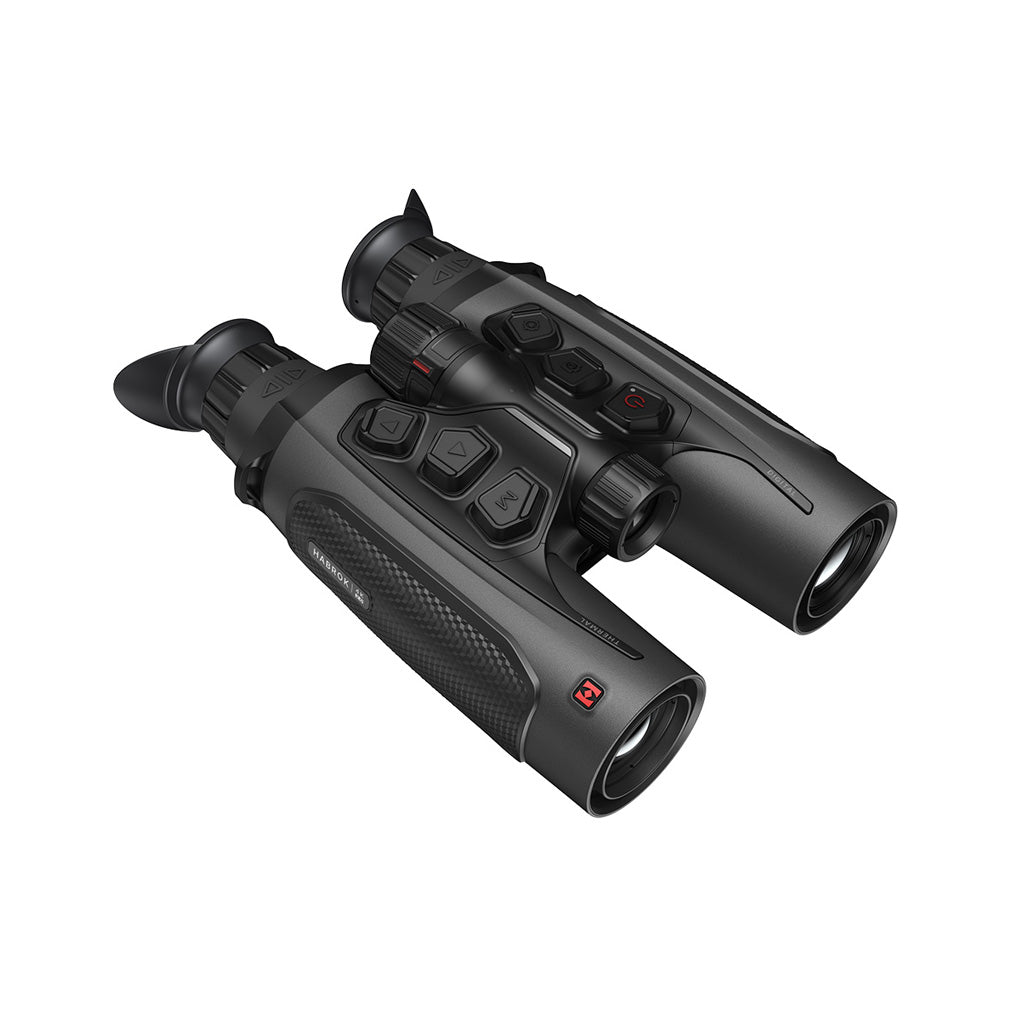

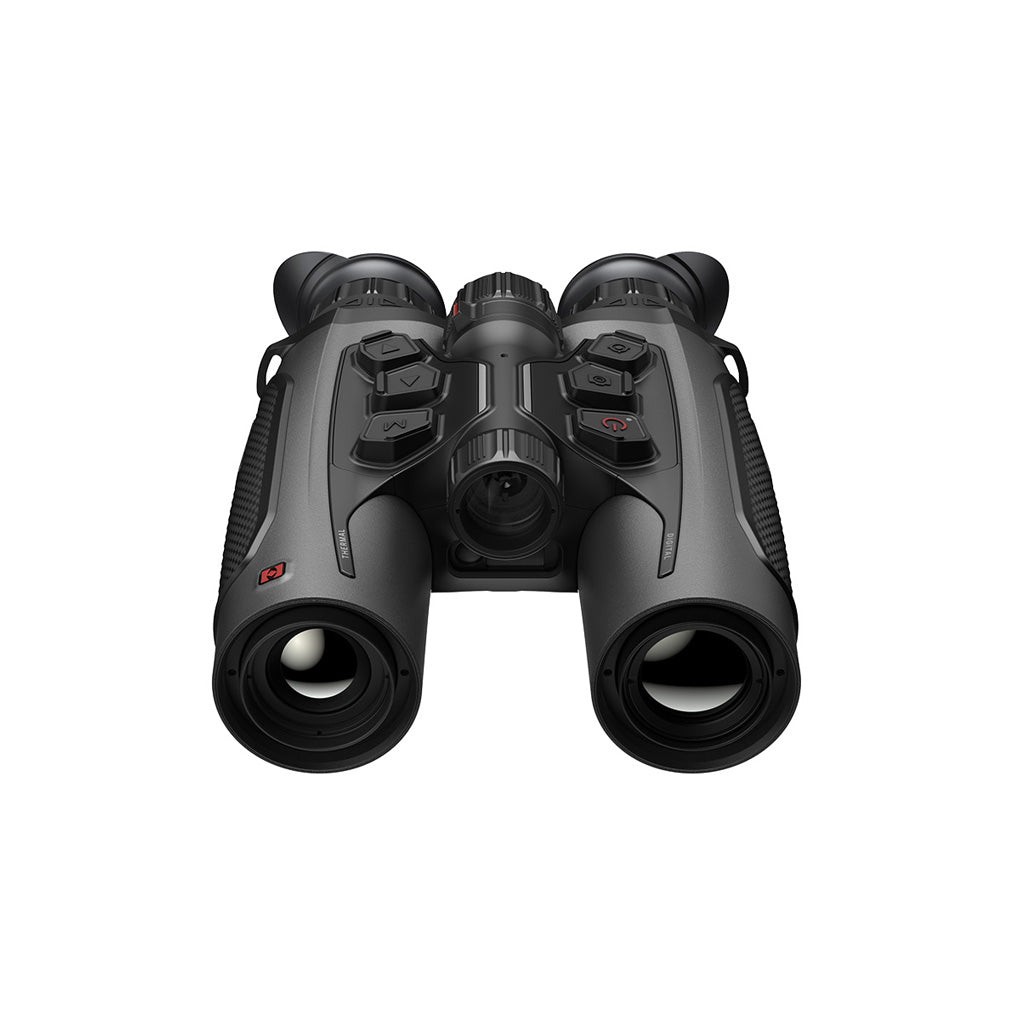

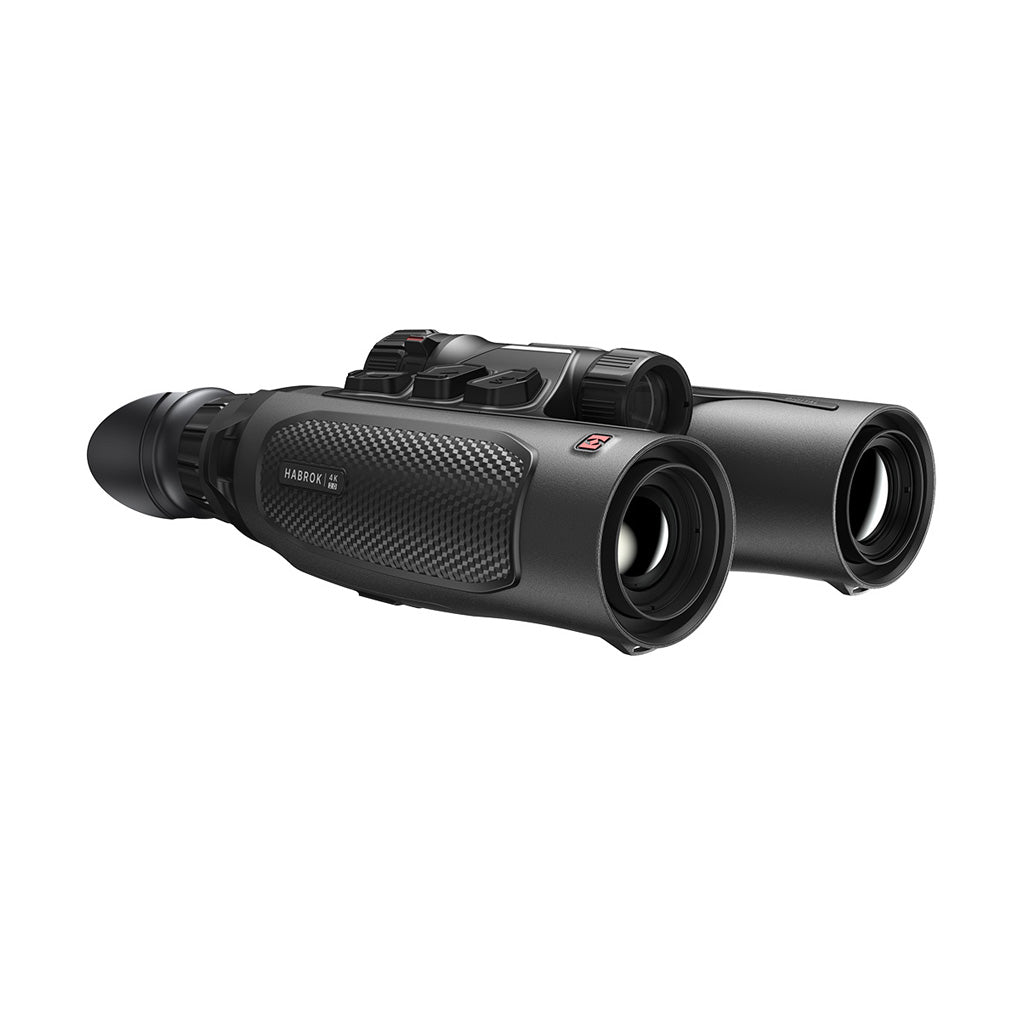

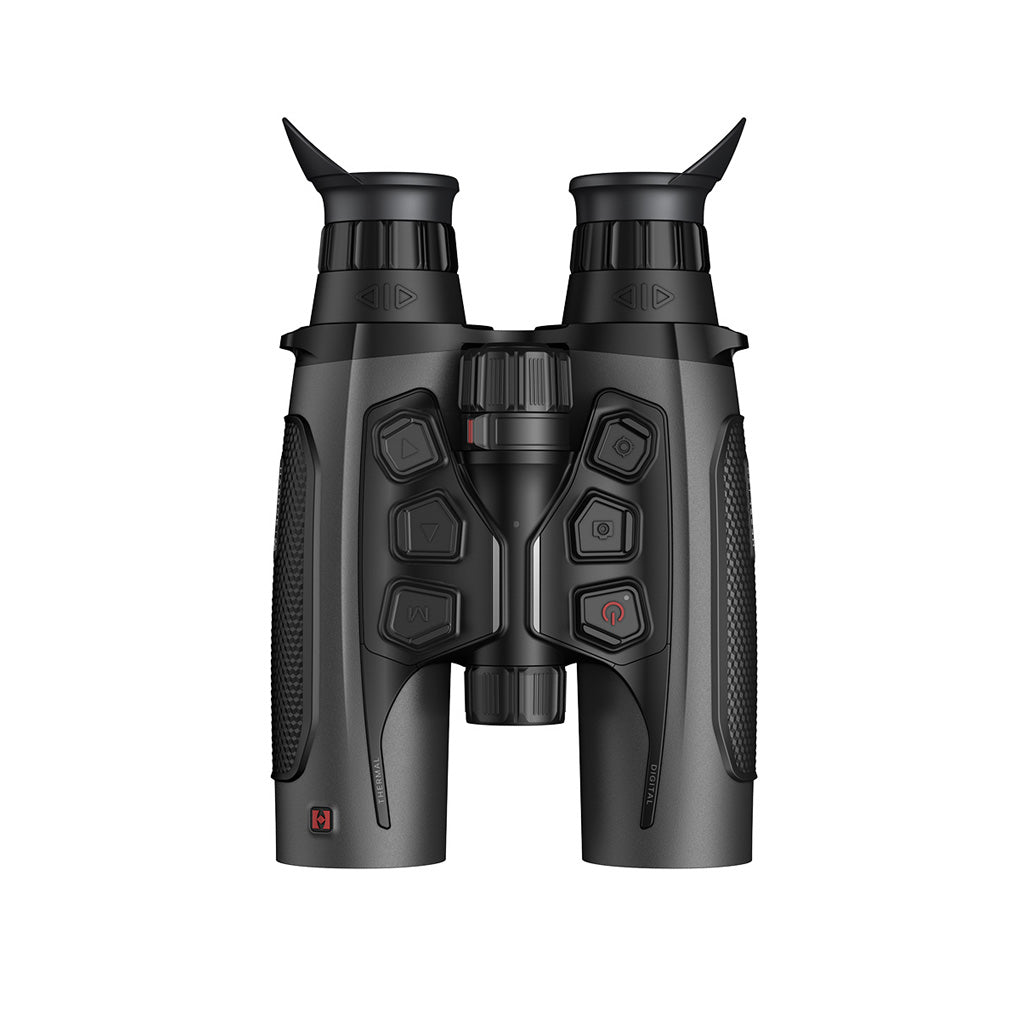

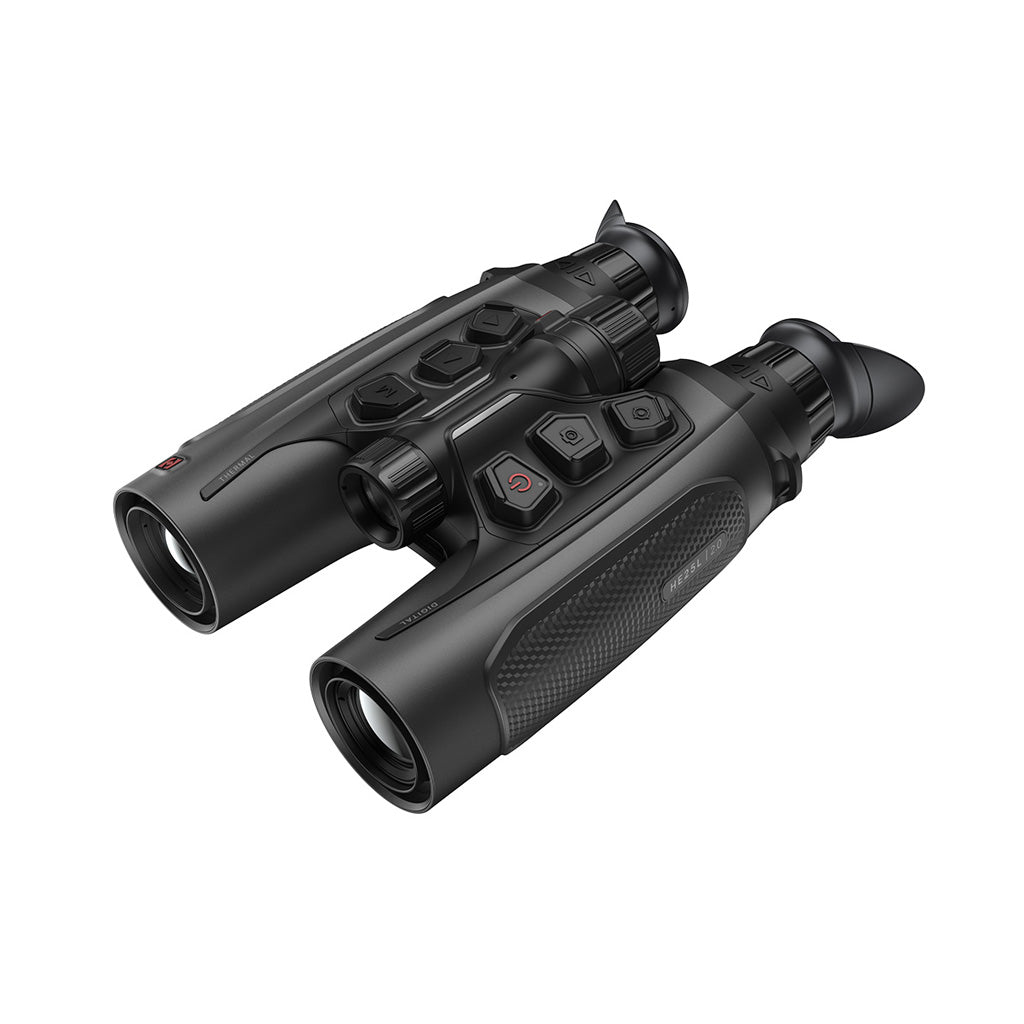

HIKMICRO Habrok 4K 2.0 HE25L 20mK Multi-Spectrum Thermal Binoculars

The HIKMICRO Habrok 4K 2.0 HE25L is a highly advanced multi-spectrum digital and thermal binocular with integrated laser rangefinder, purpose-built for demanding daytime and mixed-light applications. Designed for hunting, wildlife observation, search and rescue, and field exploration, it combines thermal detection, true 4K digital imaging and precision ranging into a single, ergonomic platform capable of performing in all weather conditions.

At its core is an ultra-sensitive 256 × 192 thermal sensor with <18mK NETD, paired with a fast 25mm F1.0 lens delivering reliable thermal detection out to 1200 metres. This allows heat signatures to be clearly identified through foliage, mist and low-contrast environments. HIKMICRO’s HSIS Shutterless Image System ensures uninterrupted viewing without image freezing, maintaining smooth, stable observation during dynamic use.

For daylight performance, the Habrok 4K 2.0 features a 3840 × 2160 UHD CMOS digital sensor combined with a 60mm F2.2 lens, providing exceptionally sharp imagery with 5.5x to 22x zoom. The dual-channel optics architecture allows instant switching between thermal and digital modes via a dedicated control, giving rapid situational awareness from dawn to dusk.

An integrated 1000m laser rangefinder with ±1 m accuracy enhances precision for scouting and navigation, while replaceable 850nm and 940nm IR illuminators provide adaptable night-time illumination for both range and discretion. Advanced onboard features including electronic image stabilisation, picture-in-picture, video and audio recording, GPS, compass and hotspot connectivity further elevate its capability in the field.

Despite its performance, the Habrok 4K 2.0 remains highly practical, weighing just 895g with a compact, balanced design optimised for extended use. A replaceable rechargeable battery system delivers over 6.5 hours of runtime, while IP67 protection ensures reliability in harsh environments. Supplied with batteries, charger, IR illuminator and accessories, and backed by a 3-year HIKMICRO warranty, it is a powerful all-in-one observation tool for serious users who demand versatility, clarity and precision.

Features

• Dual-Spectrum Viewing System – Seamlessly switch between thermal and 4K digital imaging using the dedicated T/D selector, allowing rapid target identification and improved situational awareness across changing environments.
• Shutterless Thermal Imaging – HIKMICRO’s HSIS technology eliminates image freezing during calibration, delivering smooth, uninterrupted thermal viewing when tracking moving targets.
• Integrated Laser Rangefinder – Built-in LRF provides fast and accurate distance measurements, supporting confident decision-making for observation, navigation and engagement planning.
• Replaceable IR Illumination – Supplied with interchangeable 850nm and 940nm IR illuminators, enabling adaptable night-time performance from long-range visibility to discreet, low-signature observation.
• Advanced Image Stabilisation – Electronic image stabilisation on both thermal and digital channels reduces shake at higher magnifications for clearer, more comfortable viewing.
• Onboard Recording & Storage – Capture video, photos and audio directly to the internal memory, with easy access to a local album for reviewing content in the field.
• Smart Tracking & Observation Tools – Features such as hotspot detection, Hot Track and picture-in-picture enhance target awareness and monitoring efficiency.
• Integrated Navigation Sensors – Built-in GPS and digital magnetic compass add positional awareness and orientation support during extended field use.
• Ergonomic, Field-Ready Design – Compact, lightweight construction with rear focus controls allows comfortable, one-handed operation over prolonged periods.
• Replaceable Battery System – Hot-swappable rechargeable batteries ensure extended operational flexibility without reliance on fixed internal power.
• All-Weather Reliability – Robust, sealed housing with full environmental protection ensures dependable performance in rain, dust and extreme temperatures.
• Tripod Mount Compatibility – Integrated mounting interface allows stable observation during long viewing sessions or precision scanning.
• Comprehensive Warranty Coverage – Supplied with a 3-year HIKMICRO warranty for long-term confidence and peace of mind.

Specification

• Thermal Image Sensor: VOx uncooled focal plane array
• Thermal Resolution: 256 × 192
• Thermal Frame Rate: 50 Hz
• Pixel Pitch: 12 μm
• Spectral Response: 8 μm to 14 μm
• Thermal Sensitivity (NETD): <18 mK (@25°C, F# 1.0)
• Thermal Lens: 25 mm, F1.0
• Thermal Focus: Rear focus wheel
• Thermal Detection Range: Up to 1200m
• Minimum Focus Distance (Thermal): 3m
• Thermal Magnification: 4.3x–17.2x with 2×/3×/4×/5× digital zoom
• Thermal Field of View: 7.0° × 5.3° / 12.2m × 9.3m @100m
• Digital Image Sensor: 1/1.8" progressive scan CMOS
• Digital Resolution: 3840 × 2160 (4K UHD)
• Digital Lens: 60mm, F2.2
• Minimum Working Distance (Digital): 8m
• Digital Focus: Rear focus wheel
• Digital Magnification: 5.5x–22.0x with 2×/3×/4×/5× digital zoom
• Digital Field of View: 7.3° × 4.1° / 12.8m × 7.2m @100m
• Smart IR: Yes
• IR Illuminator: 940nm (default) / 850nm (replaceable)
• Night Viewing Range: Up to 400m
• Replaceable IR Illuminator: Yes
• Display Type: 0.49" OLED
• Display Resolution: 1920 × 1080
• Colour Palettes: Thermal
• Exit Pupil: 8mm
• Eye Relief: 15mm
• Diopter Adjustment: –5D to +3D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold / Warm
• Contrast Adjustment: Yes
• Electronic Image Stabilisation: Supported on thermal and digital channels (from 2x)
• Zoom Pro: Yes
• HSIS Shutterless Imaging: Yes
• Video Recording: Yes
• Photo Capture: Yes
• Audio Recording: Yes
• Standby Mode: Yes
• Internal Storage: 64 GB EMMC
• Picture-in-Picture: Yes
• Hotspot Detection: Yes
• Hot Track: Yes
• Digital Magnetic Compass: Yes
• GPS: Yes
• Local Album: Yes
• Battery Type: Replaceable rechargeable Li-ion
• Operating Time: ≥6.5 hours (25°C, hotspot and LRF on)
• Power Supply: USB Type-C, 5V DC, 2A
• Protection Rating: IP67
• Dimensions: 143.1 × 74.8 × 223.3mm
• Operating Temperature: –30°C to +55°C
• Weight: 895g (without batteries)
• Interpupillary Adjustment: 60–74mm
• Mounting Interface: 1/4"-20 UNC
• Laser Safety Class: Class 1
• Laser Wavelength: 905nm
• Maximum Rangefinder Distance: 1000m
• Range Accuracy: ±1m
• Minimum Rangefinder Distance: 10m

Warranty

This comes with a 3 year warranty from HIKMICRO, see the user manual that comes with the HIKMICRO Habrok 4K 2.0 for more details.
