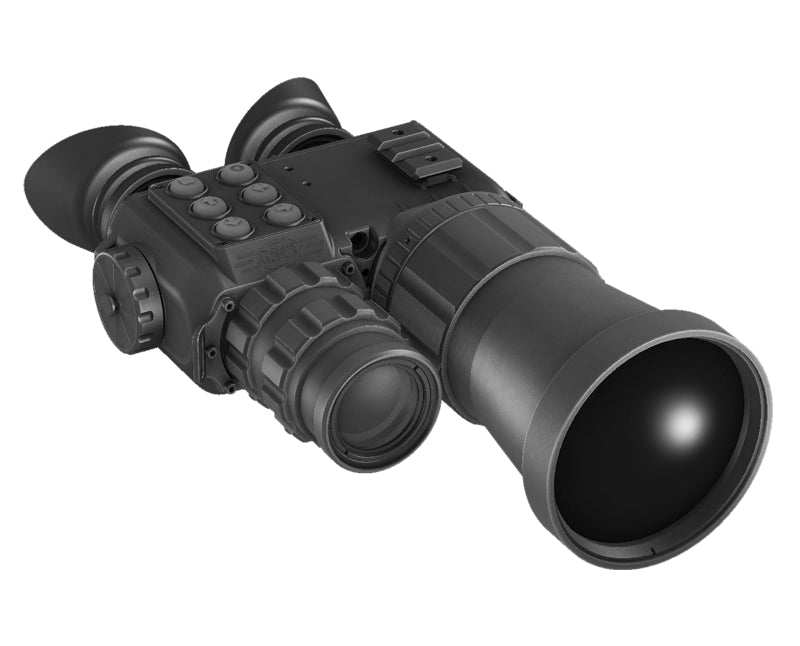

GSCI Quadro-B100 Fusion Day / Night Vision / Thermal Imaging Binoculars

The QUADRO-B100 is the augmented vision long-range binoculars for tactical surveillance and observation.
Along with selecting between visible/near-infrared and far-infrared (thermal) channels individually, GSCI’s Unique Patented technology allows to produce and display real-time, delay-free fusion image that superimposes all ranges of the spectrum from its sensors to successfully detect any target and defy poor lighting or weather conditions. Wide field of view allows for better situation awareness.
The unit is rugged, lightweight, made of hard-anodized aluminum for added strength and shock resistance.
Features
- 100% Target Detection Capability
- Dual-Eye Observation
- Multi-Mode 24/7 Operation
- High Situational Awareness
- Auto-NUC: No Calibration Needed
- Universal Power Solution
- Made In Canda, Non-ITAR System
Technical Data
Optical Parameters
- Optical Magnification: 4x
- Fieled of View: 6.2ºx4.7º
- Focusing Range: 3m .. Infinity
- Eyepiece: Dual
- Eyerelief: Min. 20mm
System Parameters
- Digitial Passive Stadiametric Rangefinder (SRF): Yes
- Digital Details Enhancement Feature (DDE): Yes
- Digital Edge Detection Feature (DED): Yes
- Wide Dynamic Range Feature (WDR): Yes
- Stow Safety Feature (SSF): Yes
- Power Saving Mode: Yes
- Real Time: Time & Date Stamp, Simplified, Extended, DTG Formats
- Detection Capability (Man Sized Target 1.7x0.5m): 3330m
- Detection Capability (NATO Target 2.3x2.3m) 4500m
- Hand-Held Configuration: Yes
- Tripod-Mountable: Yes
- User Profiles (Configurable): Yes
- Automatic/Manual Pixel Masking: Yes
- External Video Feed Protection: Yes
- Automatic Power Down Control: User-Confiigurable: 10 .. 60 mins of inactivity
Thermal (LWIR) Channel
- FPA Type: Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)
- FPA Resolution and Pitch: 640x480, 17μm
- FPA Sensitivity (NETD): <50mK
- FPA Refresh Rate: 50Hz
- Digital Zoom: 1X, 2X, 4X
- Imaging Modes: Monochrome (White-Hot / Black-Hot) and 8 Colour Pallets
Day / Night (VNIR) Channel
- Sensor Type: High-Performance CCD
- Sensor Size: 1/3"
- Resolution: 800x600
- Sensitivity: Up to 0.1 LUX
- Night Boost Mode: Yes
- VNIR Modes: Day / Night
Display
- Internal Display: 0.5" Diagonal, Dual-AMOLED, Colour, 800x600
- Internal Display Contrast: >10000:1
Image Fusion
- Type: Real-time, Electronic
- Fused Channels: LWIR + VNIR
- Parallax Compensation: Electronic, Adjustable
- Heat Signature Opacity Range: User Adjustable: 0% .. 100%
Electronics, Mechinal & Environmental
-
Batteries: 4 x AA (Lithium Recommended)
- Universal Port: Video-Out, Remote Control, External Power (4VDC .. 15VDC)
- Video Output Signal: CBVS 1Vpp @ 75 Ohm
- Battery Life (4 x AA): Up to 7 Hours
- Environmental Protection: Min. IP67, Nitrogen Purged Housing
- Dimensions: 230x152x86mm
- Weight: 1.2KG
- Operating Temperature: -40ºC .. +50ºC
- Storage Temperature: -55ºC .. + 65ºC
- Body Material: Hard-Anodised Aluminium
- Warranty: 7 Years, Limited
For full product specifications, click here.
What you get
- Quadro-B100
- USB Power Cable
- Video-Out Cable
- Quick Swap Battery Containers
- Neck Cord
- Soft Carry Pouch
- Hard Carry Case
- User Manual
- Warranty Activation Form
- Cleaning Kit (3-in-1 Multi-Pen + Cleaning Cloth)
GSCI products are custom-made to order, current lead times are generally 2 to 3 weeks from receiving payment for your order until your device is ready to be dispatched by GSCI. Once your device is dispatched by GSCI, we expect for you to receive your order within 1 week (UK or International).
All night vision and thermal imaging devices require an export license if exported outside of the UK.
