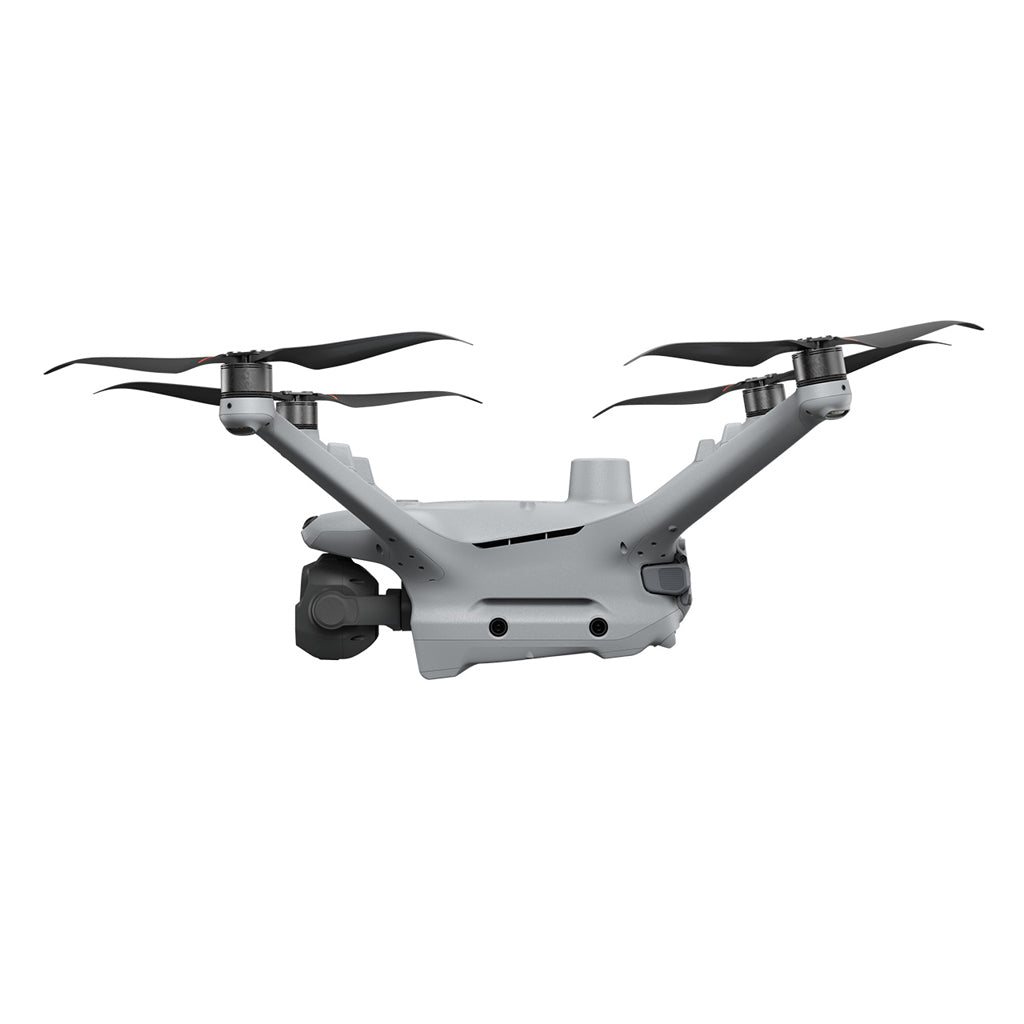

DJI Matrice 4TD Thermal Drone

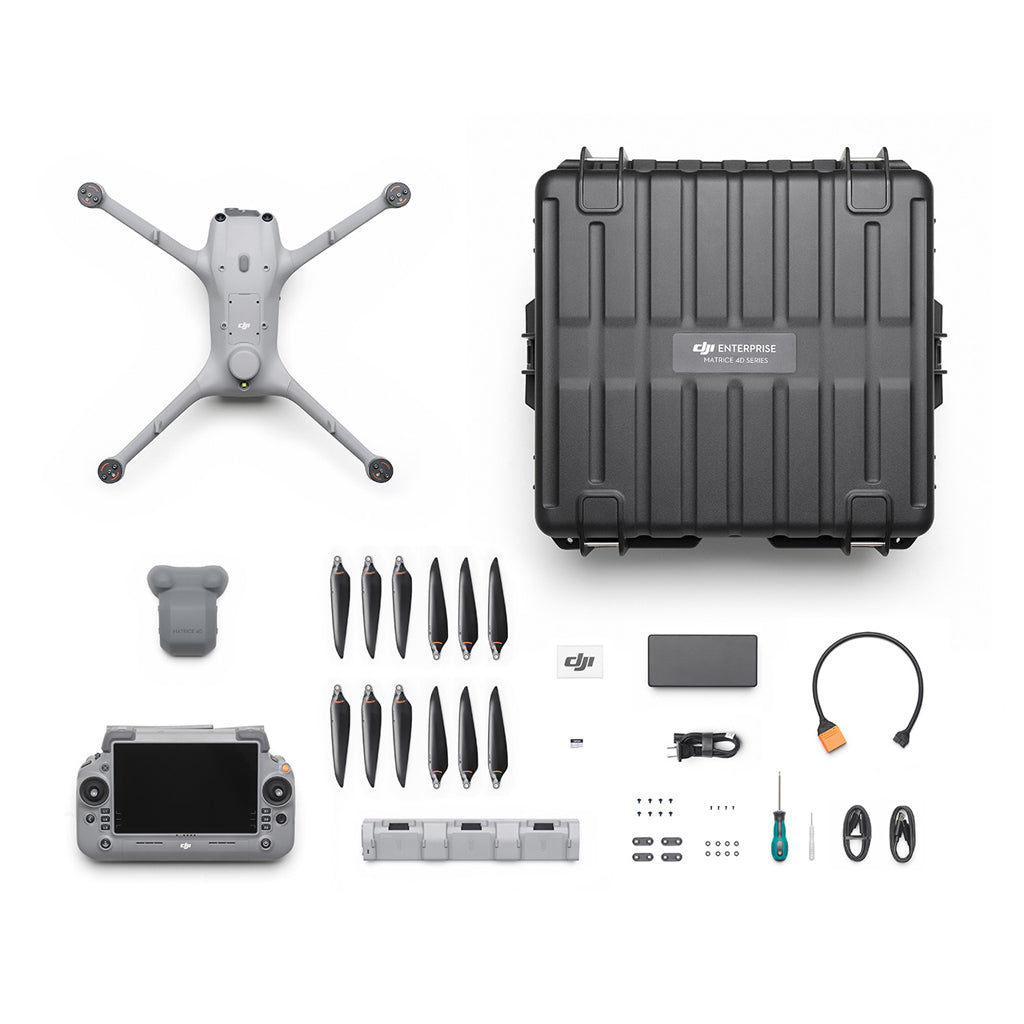

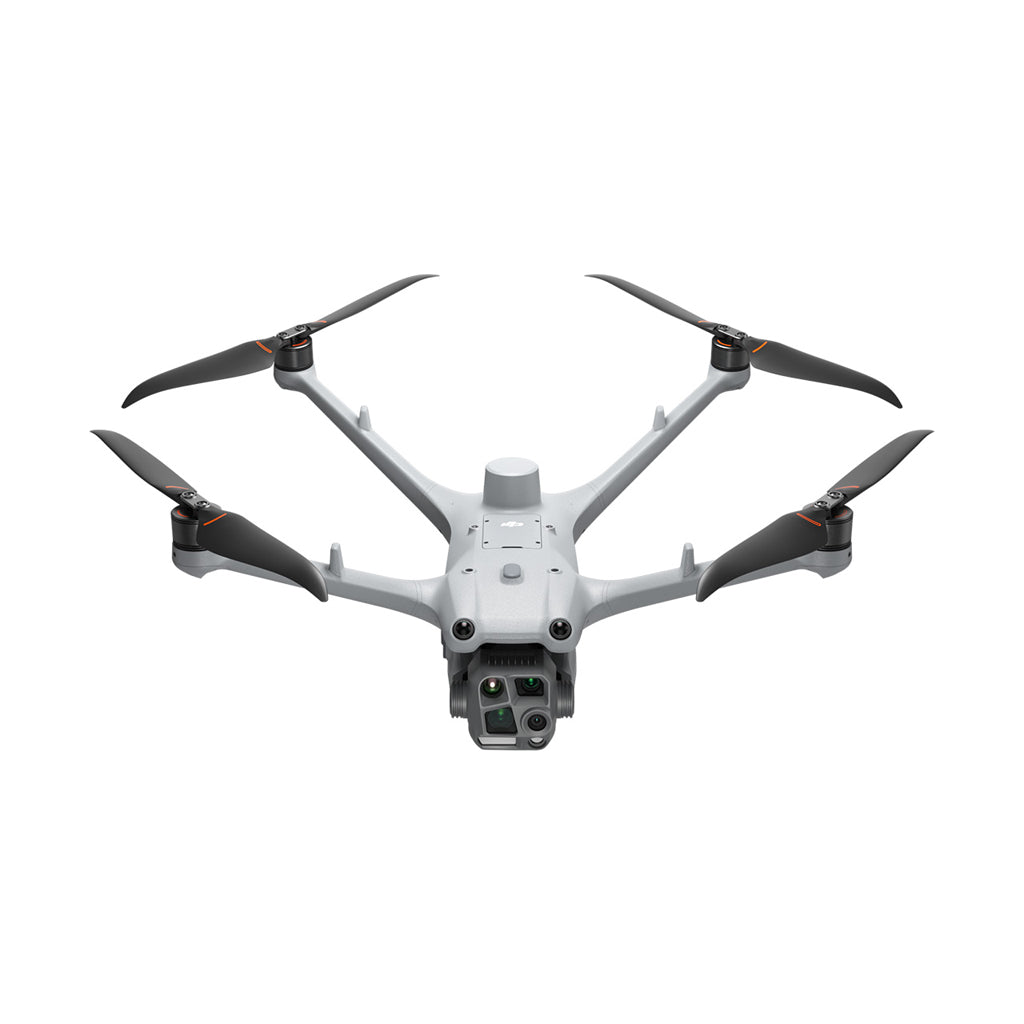

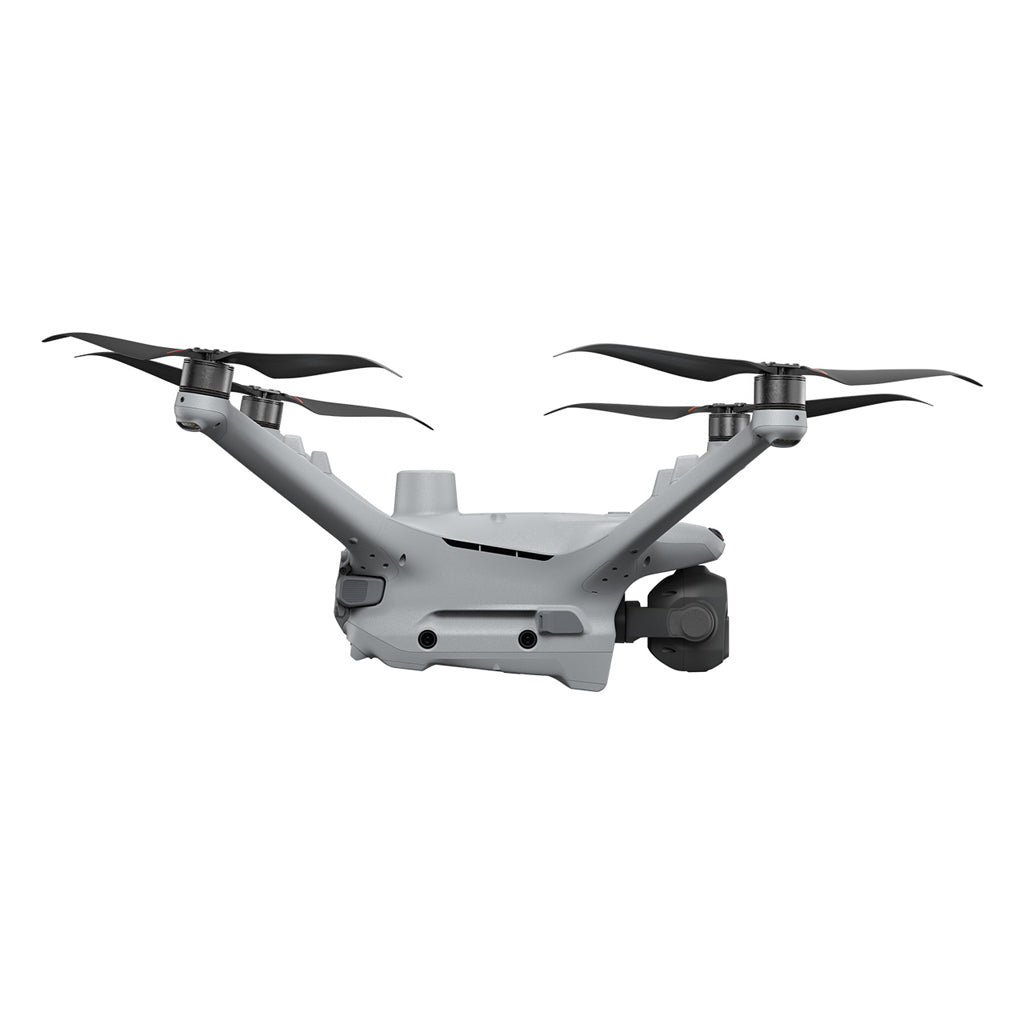

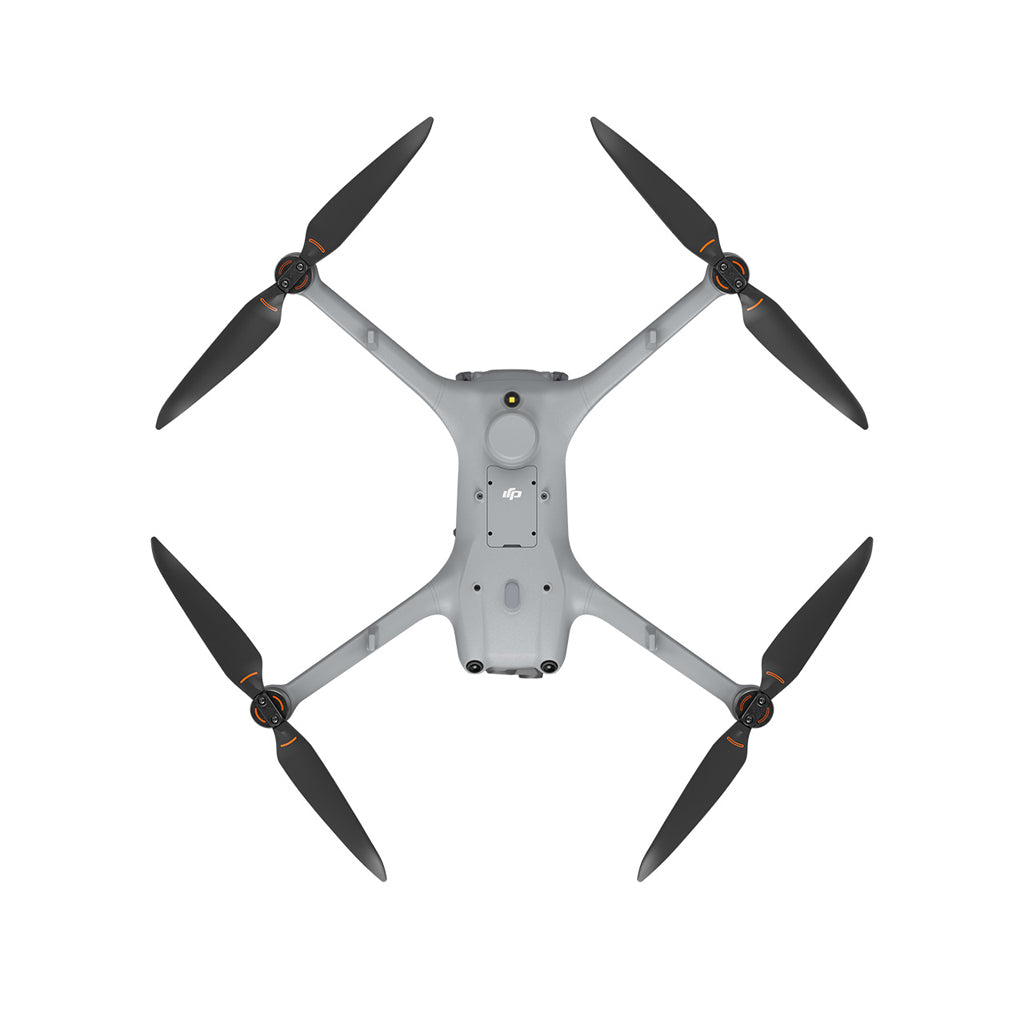

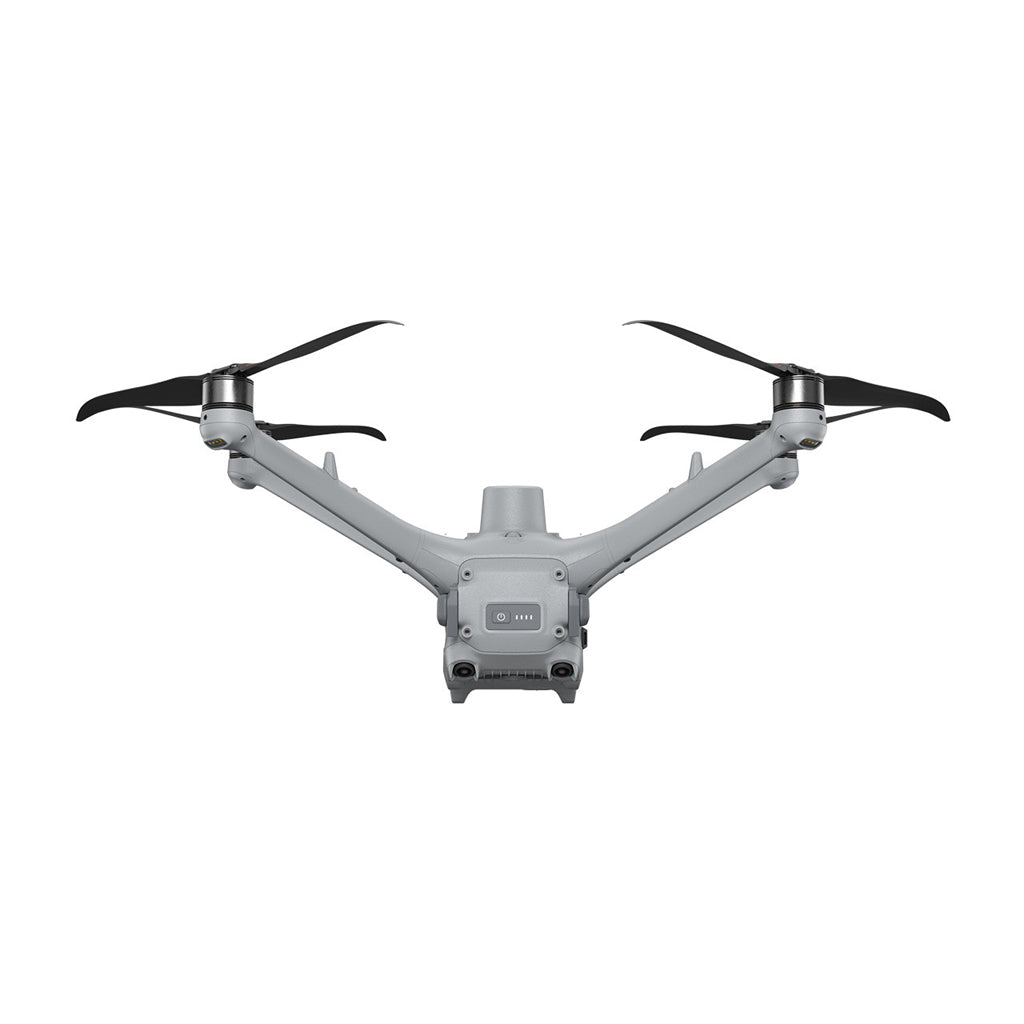

The DJI Matrice 4TD is a high-performance, IP55 rated enterprise drone designed to be paired with the new Dock 3. This package excludes the Dock 3, but includes the IP55 rated drone, ready to be housed and deployed in the Dock 3. Its six-module payload includes a wide-angle camera, 3x and 7x optical zoom lenses, a thermal sensor, NIR auxiliary light, and a laser rangefinder.

Its robust design ensures it operates in more demanding weather conditions, including rain, low light, and extreme temperatures. This resilience makes the Matrice 4TD especially suitable for operations in harsh environments, where thermal detection is critical for identifying heat sources, finding people, or conducting damage assessments in disaster zones.

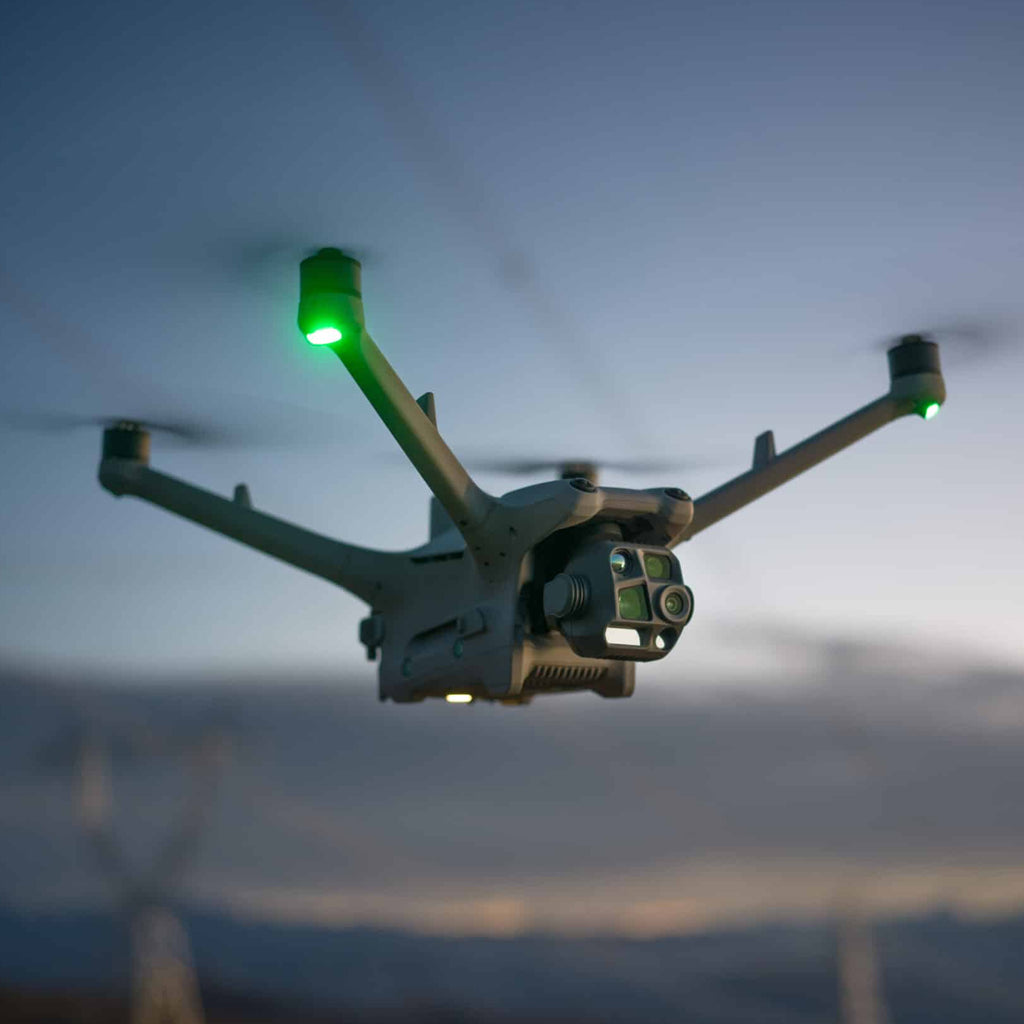

Equipped with a high-resolution thermal camera, the Matrice 4TD detects heat signatures in darkness or obscured conditions. Its advanced NIR illumination enhances visibility, making it ideal for search and rescue, night surveillance, and infrastructure monitoring. This ensures critical data collection in low-light environments.

Its AI-powered recognition and advanced navigation enhance safety and efficiency. The drone automatically detects and tracks people, vehicles, and ships, with support for custom object detection. GNSS+Vision positioning, automatic obstacle detection, and five-directional vision assist ensure precise, secure flights, even in complex scenarios.

The Matrice 4TD is a game-changer for wildlife management, search and rescue, and surveying. It helps conservationists monitor wildlife, assists in finding missing persons with thermal imaging, and enables accurate 3D mapping for environmental and infrastructure analysis. Its real-time data capabilities improve decision-making and operational success across industries.

Features

• IP55 Matrice 4TD drone, 1 Year of DJI Care Enterprise Plus

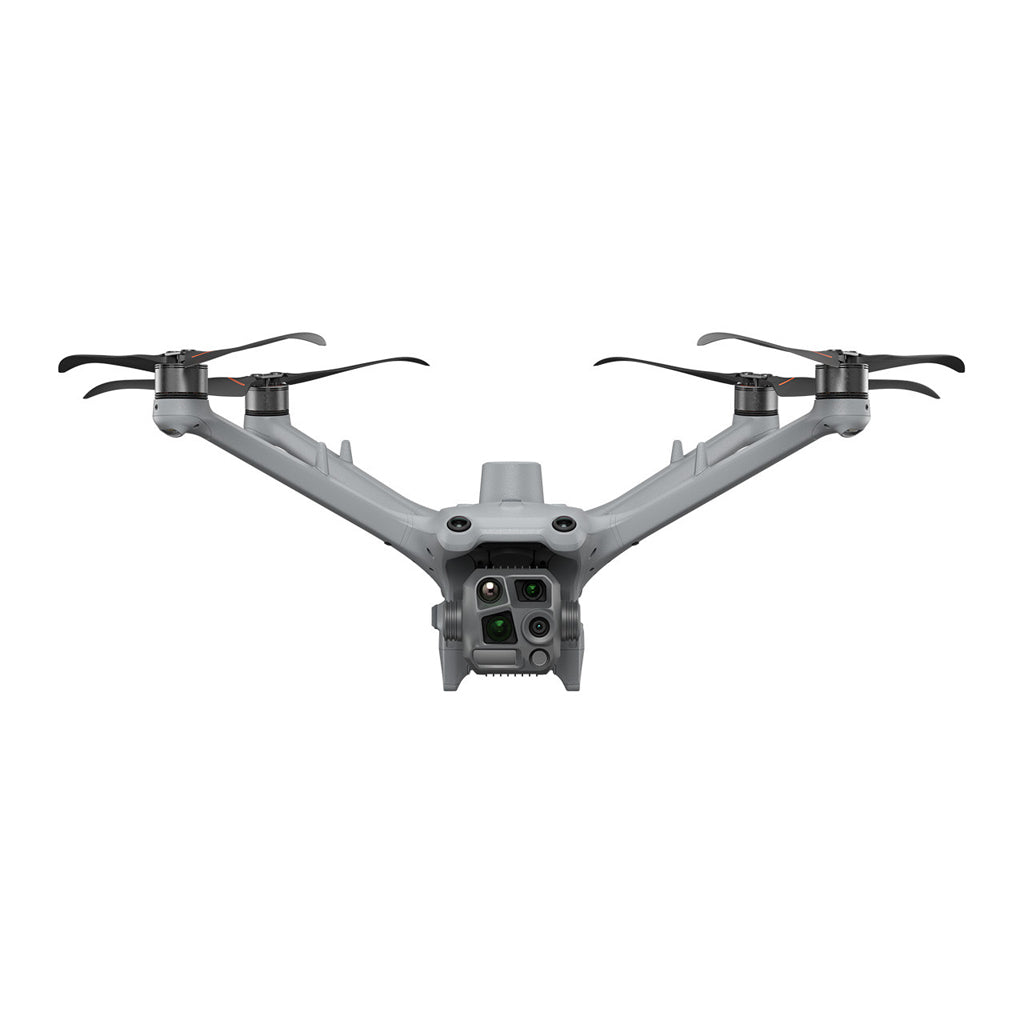

• Versatile Six-Sensor Payload: Includes a wide-angle camera, dual optical zoom lenses (3x and 7x), a thermal sensor, NIR auxiliary light, and a laser rangefinder for enhanced data collection.
• Exceptional Nighttime Imaging: Designed for superior performance in low-light conditions with advanced thermal imaging and upgraded NIR illumination technology.
• Smart AI Detection: Leverages AI-driven algorithms to identify people, vehicles, and boats, with the ability to integrate custom object recognition models.
• Advanced Safety & Navigation: Features GNSS+Vision positioning, automatic obstacle detection, and a five-directional vision assist system for precise and secure flights.

Specification

• Weight: 1850 g
• Max Takeoff Weight (Standard Propellers): 2090 g
• Dimensions: 377.7×416.2×212.5 mm (L×W×H)
• Diagonal Wheelbase: 438.8 mm
• Front Motor Left-Right Wheelbase: 383.0 mm
• Rear Motor Left-Right Wheelbase: 343.0 mm
• Front-Rear Wheelbase: 341.6 mm
• Max Ascent Speed (Normal Mode): 6 m/s
• Max Ascent Speed (Sport Mode): 10 m/s
• Max Descent Speed (Normal Mode): 6 m/s
• Max Descent Speed (Sport Mode): 8 m/s
• Max Wind Speed Resistance: 12 m/s
• Max Flight Time: 54 minutes
• Max Operating Radius: 10 km
• Max Flight Distance: 43 km
• Max Pitch Angle (Normal Mode): 25°
• Max Pitch Angle (Sport Mode): 30°
• Max Angular Velocity: 200°/s
• Operating Temperature: -20° to 50° C
• Ingress Protection Rating: IP55
• Motor Model: 2611
• Propeller Model: 1364F foldable low-noise anti-ice propellers
• RTK Model: Integrated on the aircraft
• Beacon: Integrated on the aircraft
• Wide (Camera Sensor): 1/1.3-inch CMOS, Effective Pixels
• Medium Tele (Camera Sensor): 1/1.3-inch CMOS, Effective Pixels
• Telephoto (Camera Sensor): 1/1.5-inch CMOS, Effective Pixels
• Lens FOV: 82°
• Lens Equivalent Focal Length: 24 mm
• Lens Aperture: f/1.7
• Lens Focus: 1 m to ∞
• ISO Range (Normal Mode): ISO 100 to ISO 25600
• Wide Camera (Night Scene Mode): ISO 100 to ISO 409600
• Medium Tele Camera (Night Scene Mode): ISO 100 to ISO 409600
• Tele Camera (Night Scene Mode): ISO 100 to ISO 819200
• Shutter Speed: 2-1/8000 s
• Max Photo Size Wide: 8064 × 6048
• Max Photo Size Medium Telephoto: 8064 × 6048
• Max Photo Size Telephoto: 8192 × 6144
• Video Coding Format: H.264/H.265
• Coding Strategy: CBR, VBR
• Resolution 4K: 3840 × 2160@30fps
• Resolution FHD: 1920 × 1080@30fps
• Supported File System: exFAT
• Video Format: MP4 (MPEG-4 AVC/H.264)
• Digital Zoom Telephoto: 16x (112x hybrid zoom)
• Infrared Illumination: FOV
• Laser Rangefinding Range: 1800 m (1 Hz) @20% reflectivity target
• Thermal Camera Resolution: DJI Matrice 4T
• Thermal Camera Pixel Pitch: 12 μm
• Thermal Camera Frame Rate: 30 Hz
• Thermal Camera Sensitivity: ≤50mk@F1.0
• Thermal Palette: White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
• Thermal Digital Zoom: 28x
• Infrared Wavelength: 8um to 14um
• Supported SD Cards: U3/Class10/V30
• Battery Capacity: 6768 mAh
• Battery Voltage: 22.14 V
• Battery Max Charging Voltage: 22.14 V
• Battery Cell Type: Li-ion 6s
• Battery Energy: 149.9 Wh Battery Weight
• Battery Cycle Count: 400
• Battery Charging Temp: 5° to 45° C
• Battery Discharge Rate: 4C

Warranty

Please visit DJI Enterprise Warranty for warranty information on the DJI Mavic 4TD Thermal Drone.
