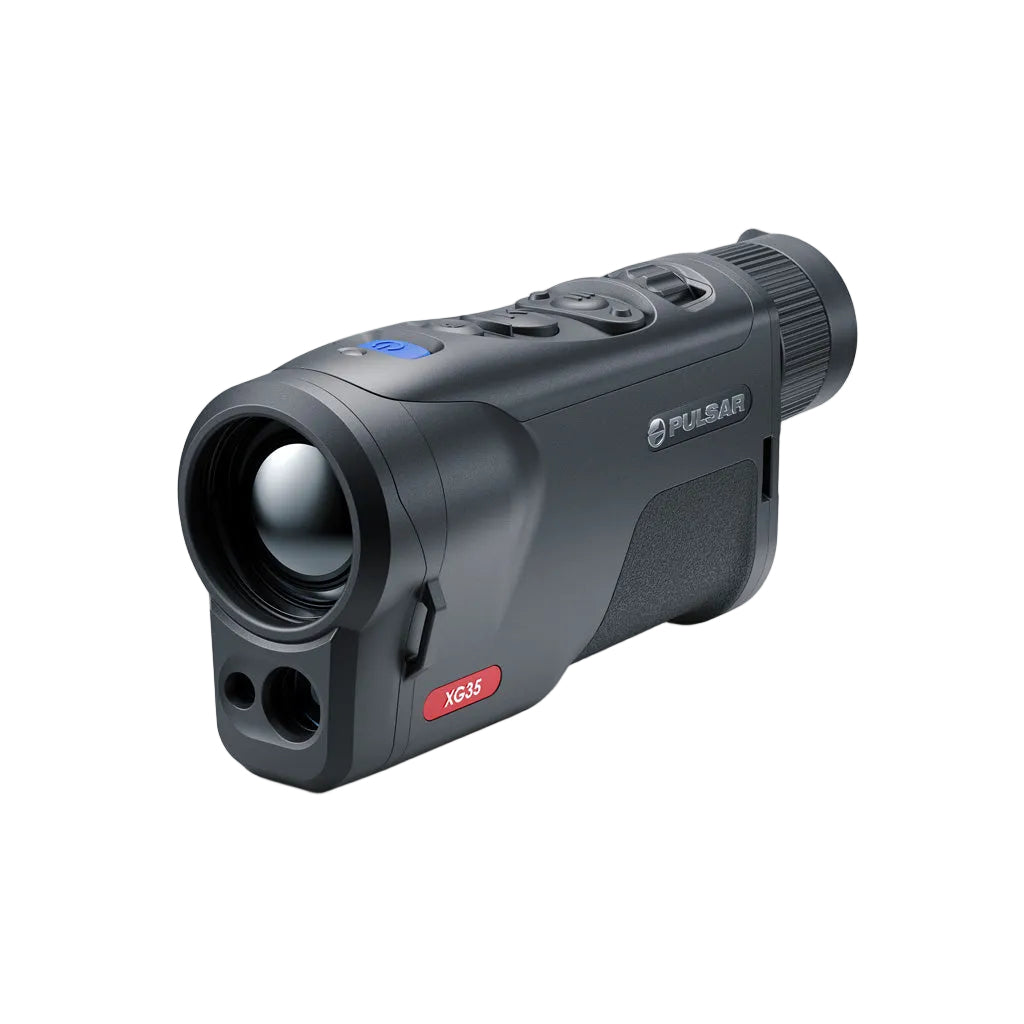

Pulsar Oryx LRF XG35 20mK Thermal Imaging Monocular

The Oryx may be palm-sized and light as a feather, but it stands shoulder to shoulder with current high-performance entries in the Pulsar range. A highly sensitive 640×480, 12µm, <20mK sNETD thermal sensor, combined with a powerful 35mm f1.0 objective lens, provides remarkable levels of image detail — enabling easy detection and identification at distances reaching up to 1800m.

A wide 12.5° field of view is perfect for searching and scanning, providing a clear view of your surroundings, and a 2.5-20x magnification range and 8x digital zoom allows for closer inspection and enhanced identification.

This thermal imaging monocular is backed up by Pulsar's 10 Day Service Commitment.

Digital Image Stabilisation

First showcased in the Merger LRF XT50, digital image stabilisation reduces the effects of camera shake and image blur caused by shaking hands or bumpy terrain, enhancing image quality when scanning the FOV or observing objects and animals at long range.

Built-in Laser Rangefinder

Blink and you’d miss it… A seamlessly integrated precision laser rangefinder can be found under the objective lens, providing an incredible 1500m distance measuring range with an accuracy of ±1m, whilst taking up a fraction of the footprint found on previous LRF-equipped monoculars. These distance measurements can prove crucial in the field, providing valuable distance data and allowing you to make informed decisions.

Optimised for One-handed Use

The Oryx LRF XG35’s focus wheel is located just in front of the viewfinder, allowing for one-handed focus adjustments, ushering in a new era of single-handed thermal observation. A four-button arrangement has been ergonomically considered to achieve comfortable operation, offering control over all of the most commonly used digital functions.

An ambidextrous wrist strap and symmetrical bodyshell design enables comfortable left- or right-handed operation, and haptic feedback will provide a short vibration when a button is pressed — confirming or alerting you to any button presses.

Dual Battery System

Equipped with Pulsar’s innovative dual-battery system, the Oryx LRF combines an internal rechargeable battery with a removeable, rechargeable APS5 battery for up to 12 hours of uninterrupted power distribution. Both batteries will display their charge percentage on-screen, allowing for accurate power monitoring. Each battery can be charged via the USB-C port.

Built-in Video Recording

Built-in recording with audio and still image capture ensures memorable moments are stored to the device’s generous 64GB of internal memory at the press of a button. These image can then be downloaded via a USB-C connection or through the Stream Vision 2 app, where they can be shared with friends or to social media.

Stream Vision 2

Connect the Oryx to your smartphone or tablet via the Stream Vision 2 app and discover a wide range of digital connectivity features, including the ability to: use your phone as a second screen when a hands-off approach is needed; download firmware updates to keep your device running at the top of its game; use your phone as a remote control, with access to all of the Oryx’s digital features; view a newsfeed to keep up to date with all the latest updates and product releases from Pulsar — and much more.

Features

• 3 sensitivity amplification levels

• Auto brightness control

• Picture-in-Picture (PiP) mode

• 9 colour palettes

• IP67 waterproof rated

• -25 to +40°C operating temperature

• Magnesium alloy construction

Specification

What you get

• Pulsar Oryx LRF XG35
• APS5 Rechargeable Battery
• Battery-locking Cover (x2)
• Power Adaptor
• USB Type-C Cable with USB Type-A Adaptor
• Carrying Case
• Hand Strap
• Quick User Manual
• Lens Cloth

• Clip


Warranty

This comes with a 3 year warranty from Pulsar. See the User Manual that comes with the Pulsar Oryx LRF XG35.
